Vertex™ Slim LED Shelf Light with Pre-installed Strip

SKU: SE00164
Sale price£36.70

Tax included. Shipping calculated at checkout

In stock

Vertex is a slim, fully integrated LED shelf light with a pre-installed strip, designed to sit on the back of shelf boards. There is no need to trim the shelf short to fit it. The power cable exits from the back, so it can span...

Read the full description
Light Colour: Natural White
Size: 462mm
Free next working day delivery over £90
Order before 2pm Monday to Friday for same day despatch.
Buying for a business? Apply for a trade account or log in.
Need it cut to length? Our TrueFIT service cuts, solders and kits this to your exact lengths, with a 48-hour turnaround and a 7 year guarantee. Get a TrueFIT quote

Vertex is a slim, fully integrated LED shelf light with a pre-installed strip, designed to sit on the back of shelf boards. There is no need to trim the shelf short to fit it.

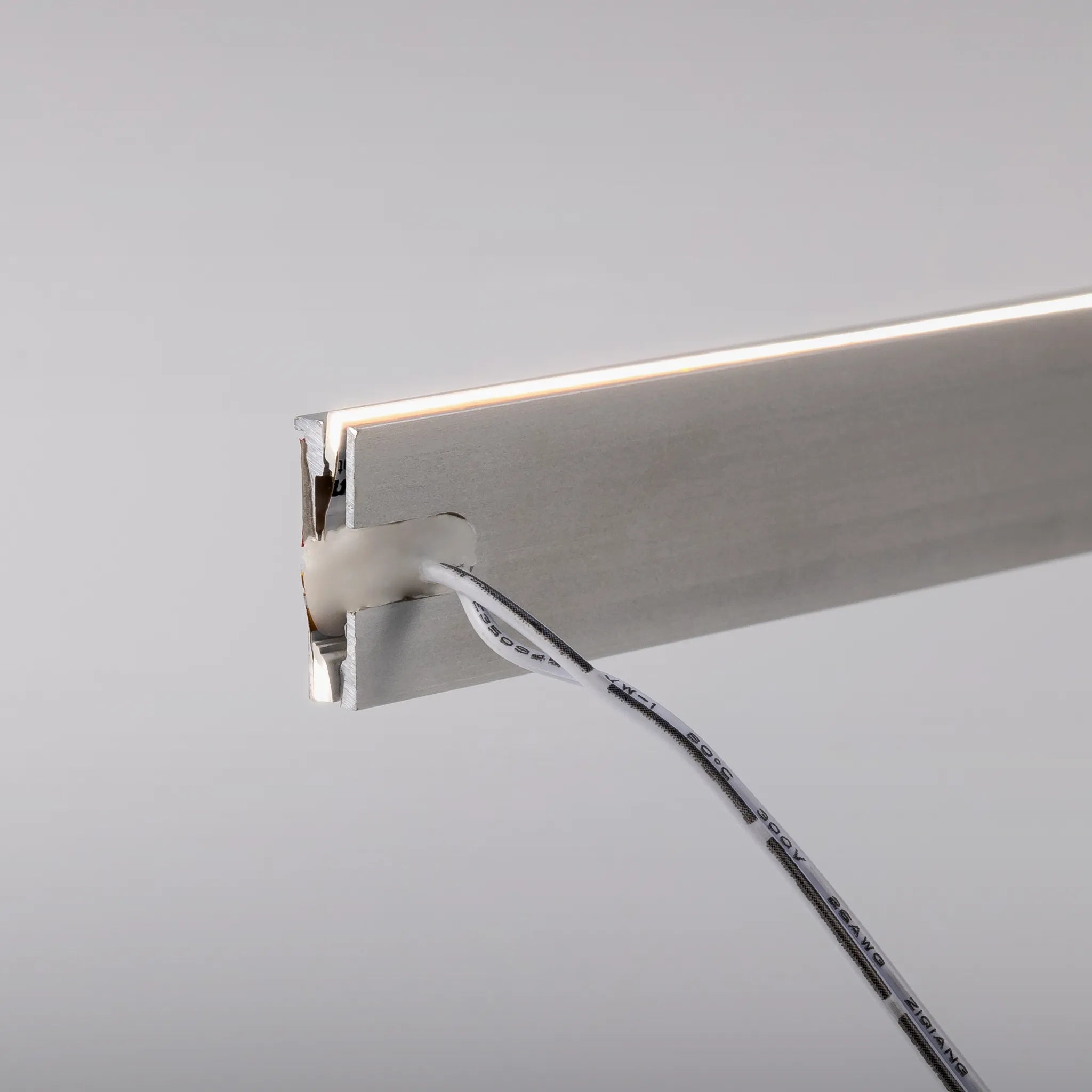

The power cable exits from the back, so it can span the shelf with no exposed wires. It gives natural white light (4000K), can be cut to any length and fixes with VHB adhesive tape. Available in 462mm, 562mm and 962mm lengths.

The Vertex LED shelf light is a slim fitting shelf light designed to sit on the back of shelf boards. No need to trim the shelf short for installation. The power cable exits backwards, this can span perfectly all the way across the shelf with no exposed wires. This is a fully integrated solution, with pre-installed strips.

  • Single Colour: Natural white light (4000K)

  • Easy Fit: No need to trim the shelf short for installation.

  • Rear cable placement: For concealing power cables.

  • Free cut: Can be cut to any desired length

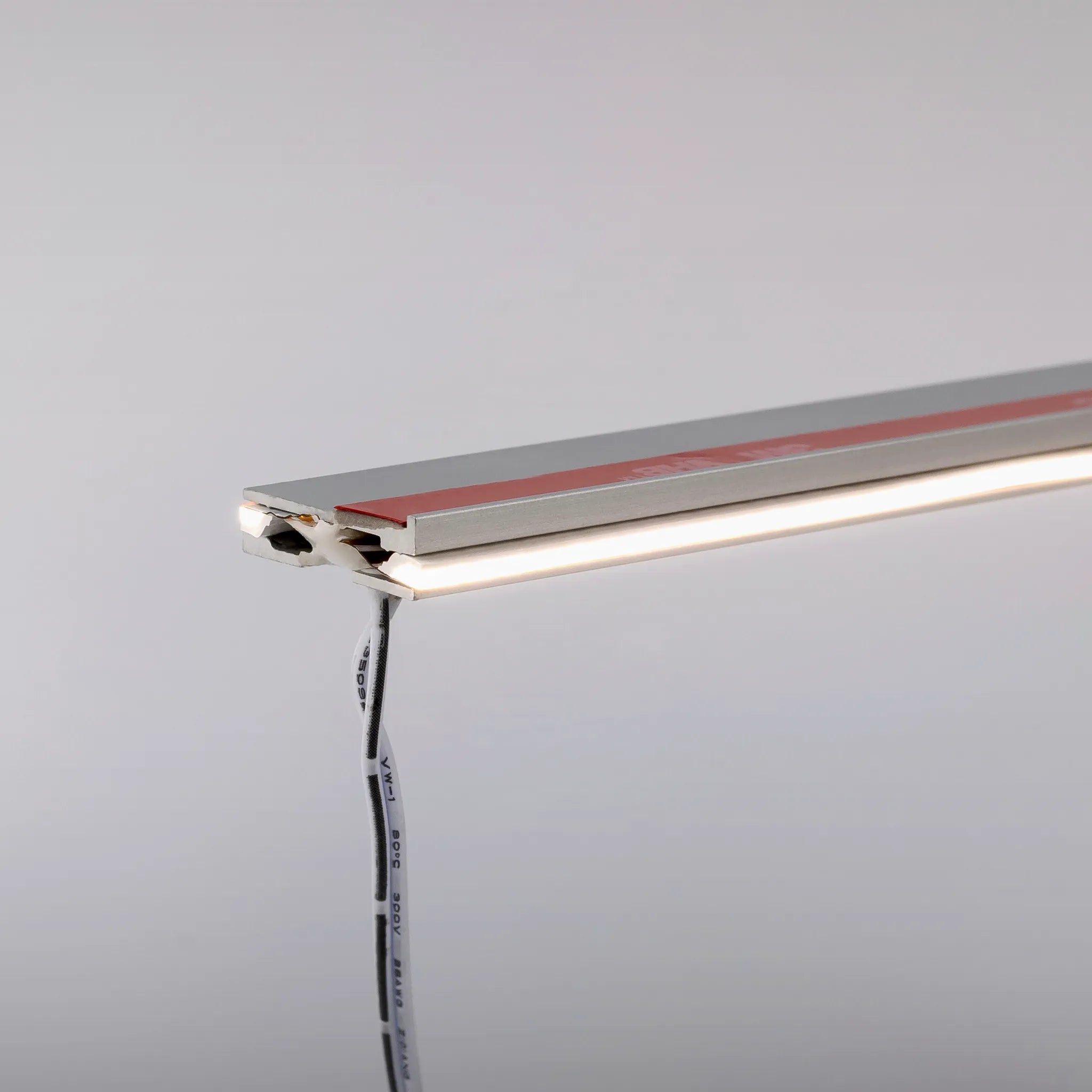

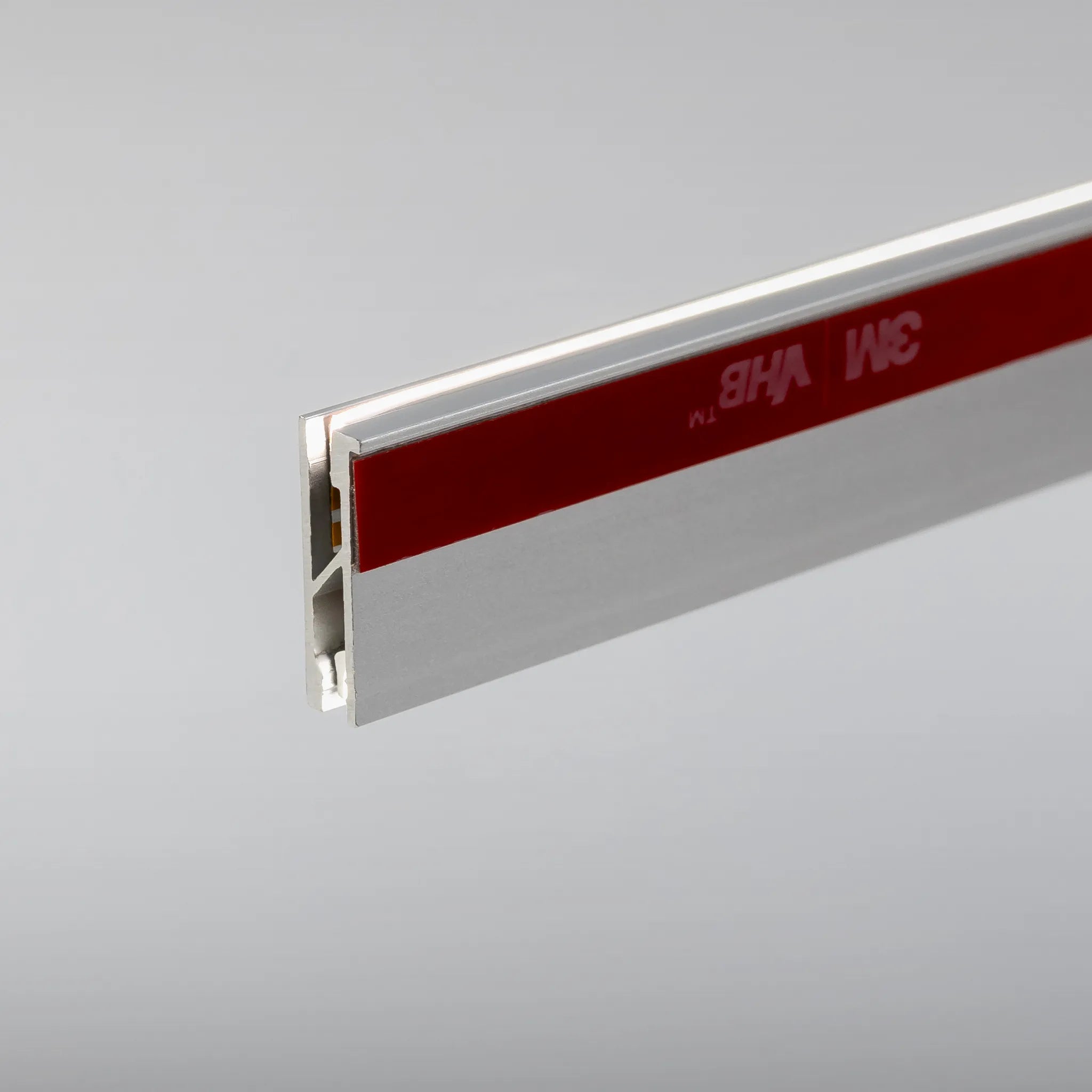

  • VHB (Very High Bond): adhesive tape backing for secure installation

  • Registered design right: 6443843

Voltage
24V
Wattage per meter
12 W/m
No. of LEDs
512 LEDs/m
Lumens
508 lm/m
Kelvins
4000K
Light Technology
Single Colour (Natural White)
Beam Angle
180°
Cut Marks
Anywhere
Cable Length
2500mm

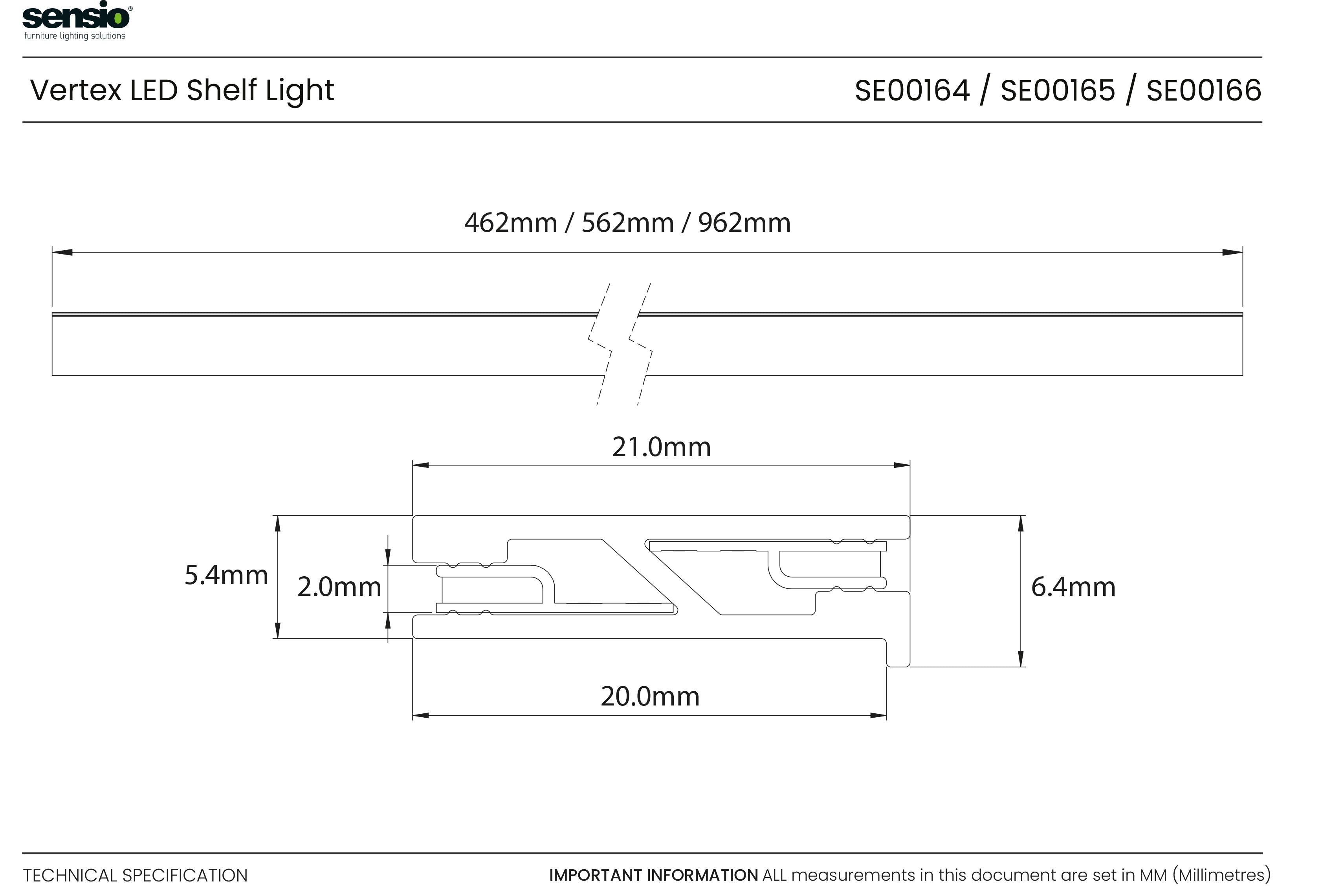

Dimensions
462mm x 6.4mm x 21mm | 562mm x 6.4mm x 21mm | 962mm x 6.4mm x 21mm
Installation Method
Adhesive VHB Tape
Dimmable
Yes, with single colour receiver or smart driver
IP Rating
IP20
Warranty
7 Years
Material
COB Strip Light+Wire

Dedicated design

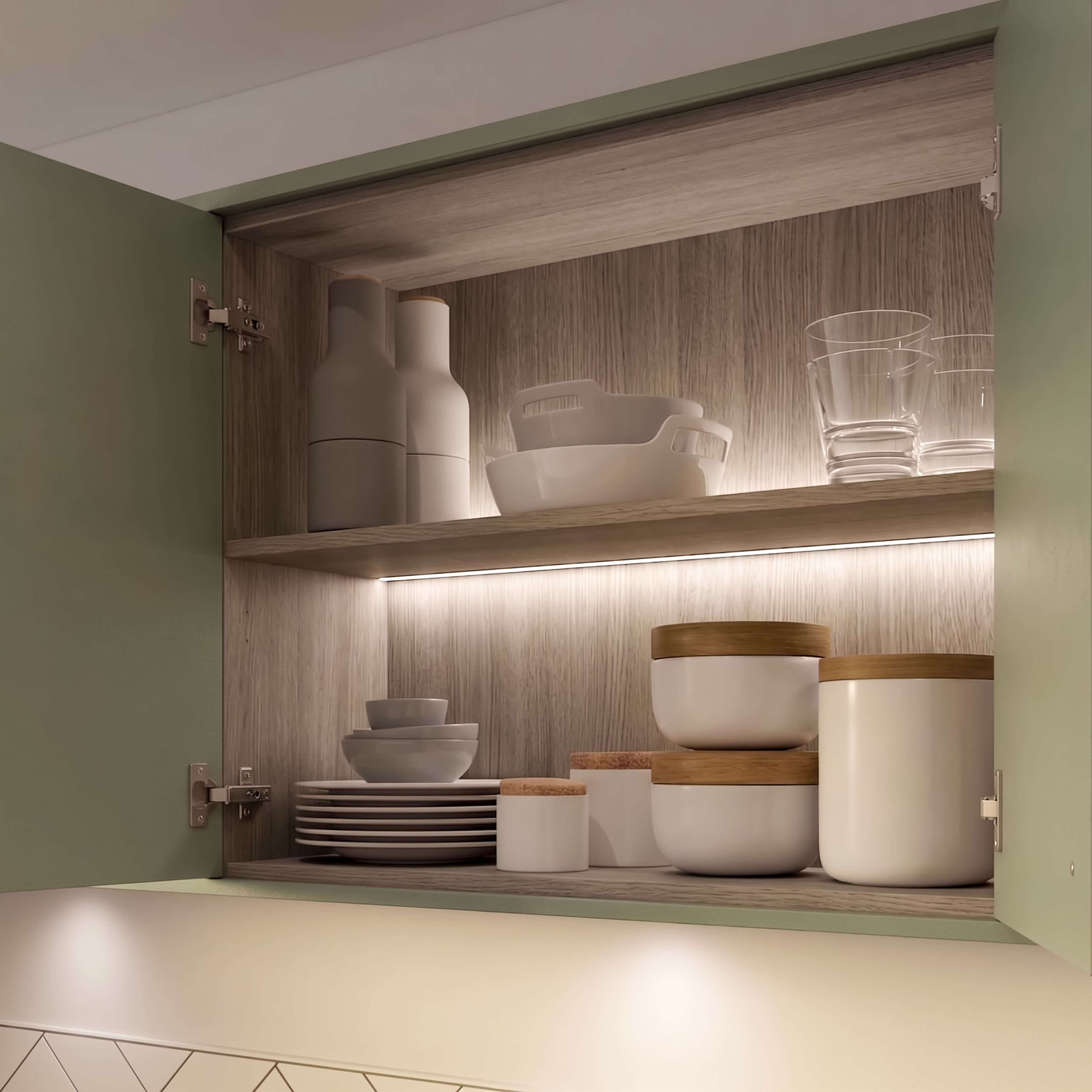

The Vertex comes pre-installed with our popular Razor X flexible LED strip to create a slim solution for illuminating shelves in cabinets, wardrobes and media units.

Considered application

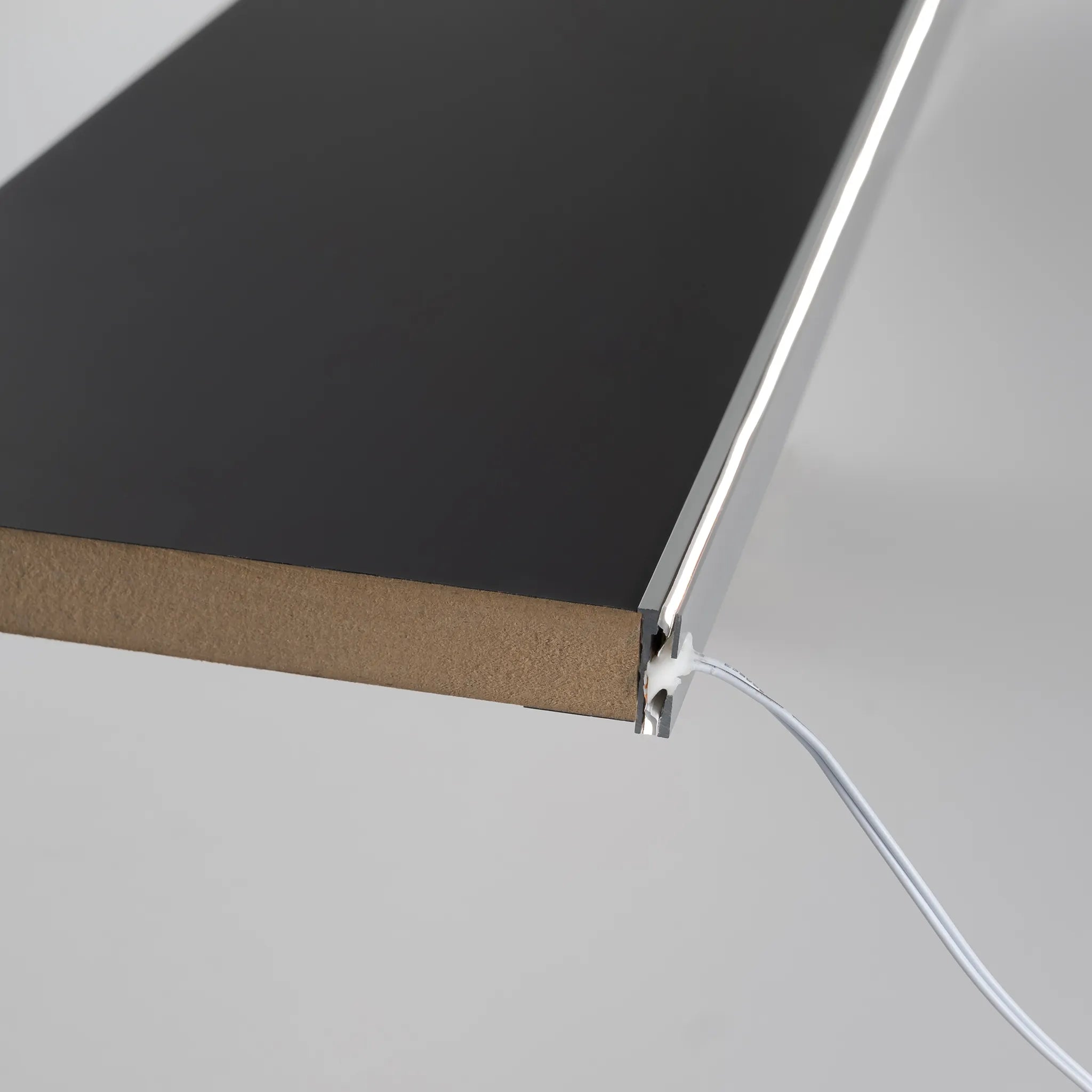

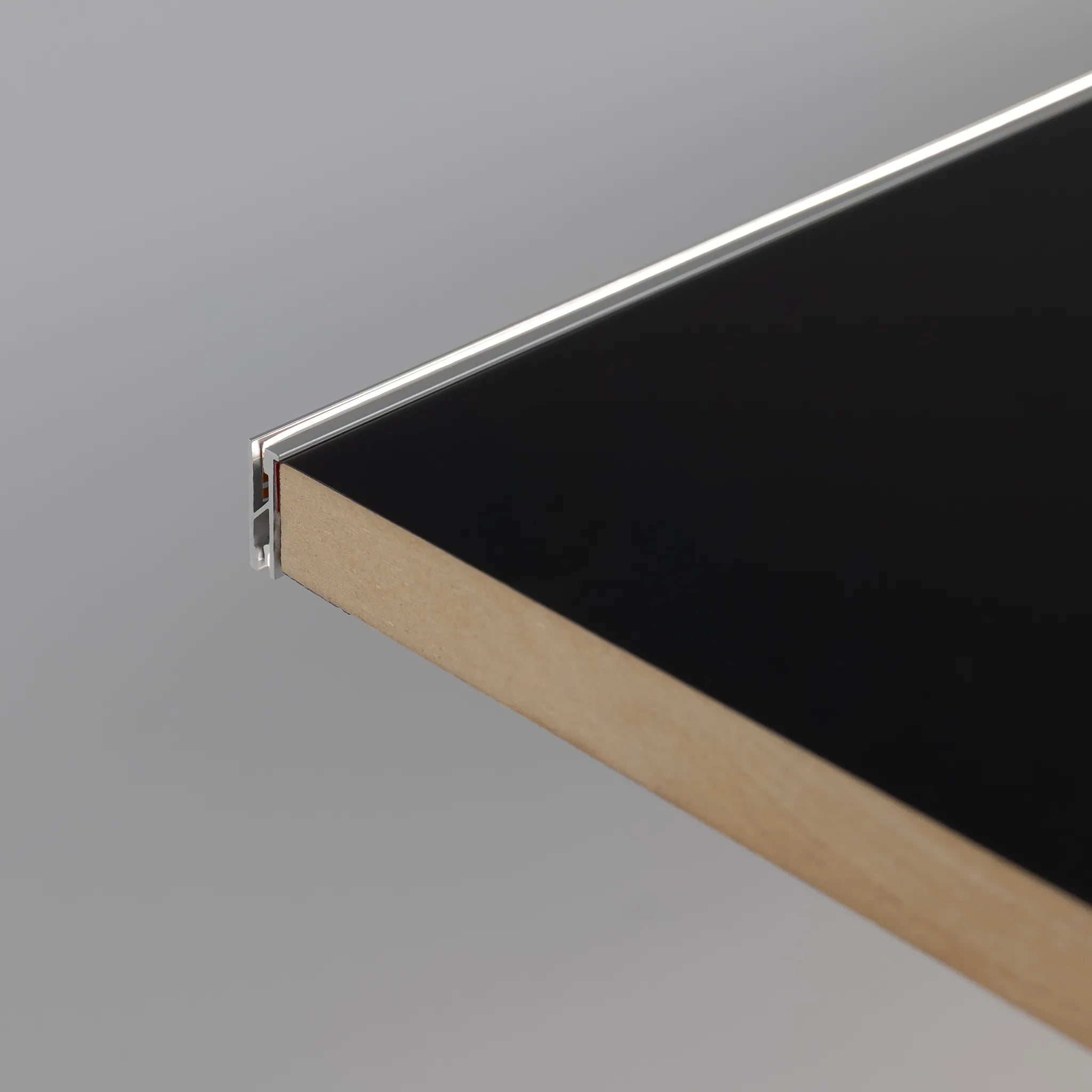

With a slim profile design, the Vertex easily fits directly onto the back of a wooden shelf without the need to trim the shelf down to fit the light in.

You may also like

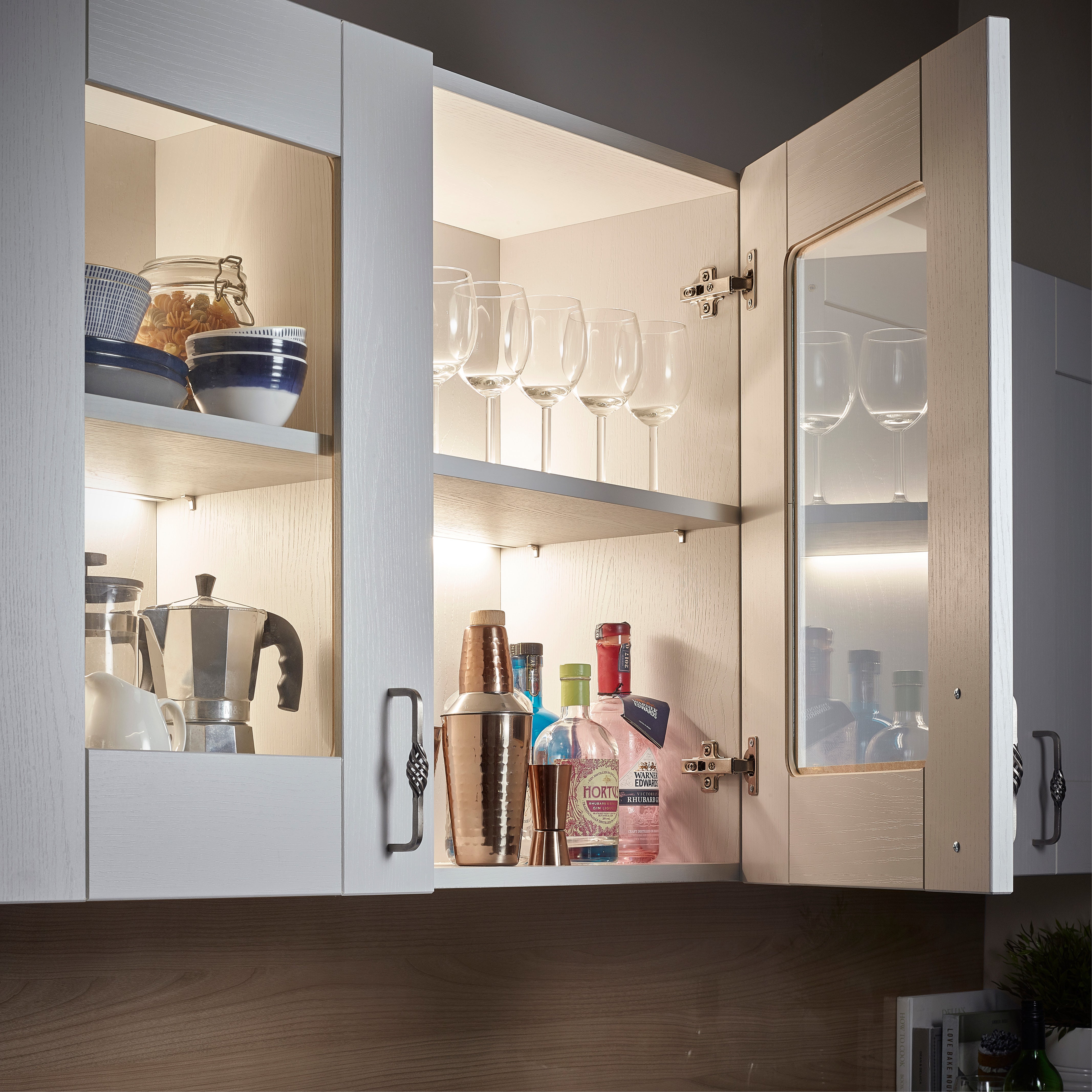

Genoa™ Up and Down LED Shelf Light for 18mm ShelvesGenoa™ Up and Down LED Shelf Light for 18mm Shelves

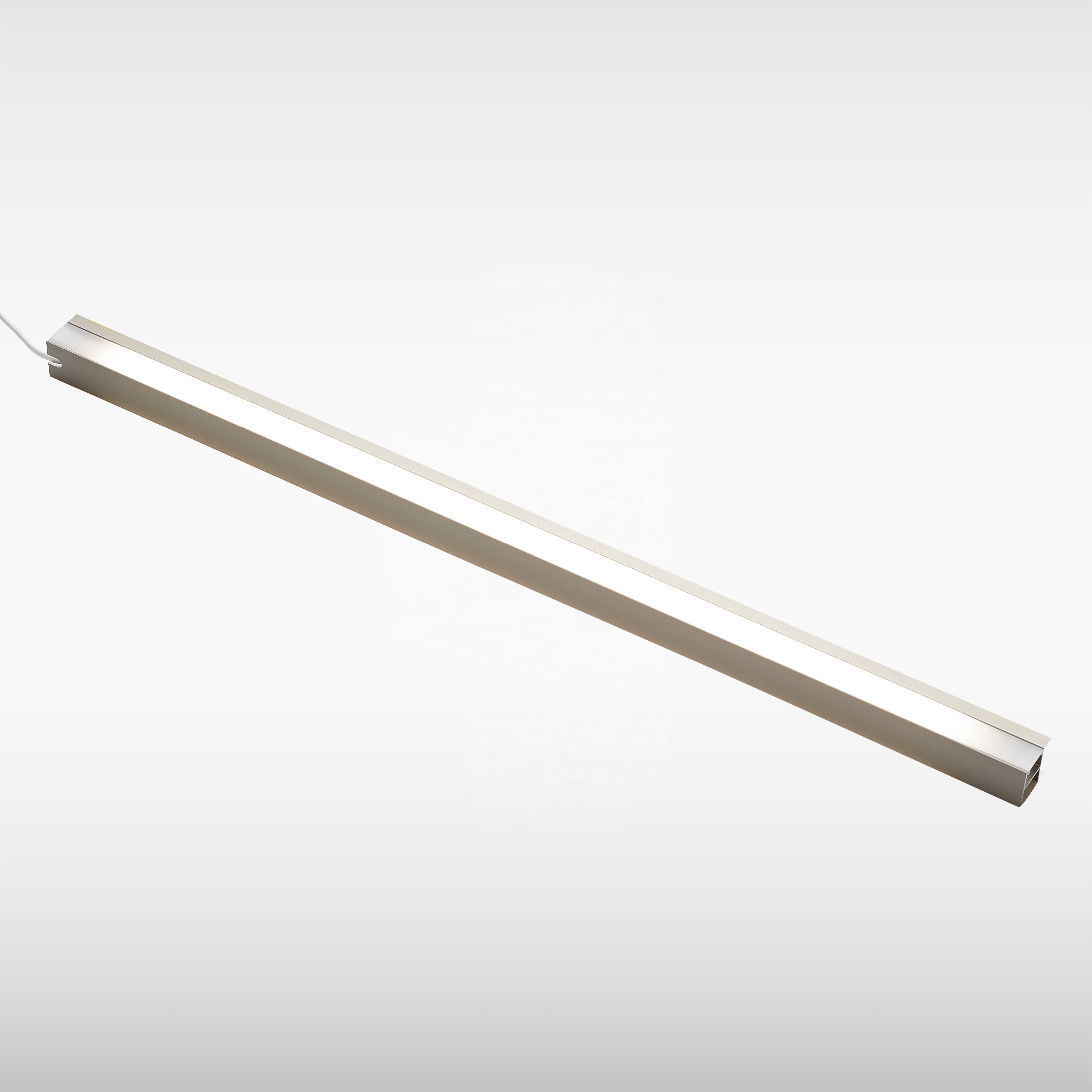

Genoa™ Up and Down LED Shelf Light for 18mm Shelves
Cool white integrated LED shelf profile
Sale price£42.36
Glow™ LED Glass Shelf Light, Natural or Cool WhiteGlow™ LED Glass Shelf Light, Natural or Cool White
Glow™ LED Glass Shelf Light, Natural or Cool White
Illuminated glass shelf clip
Sale priceFrom £24.07

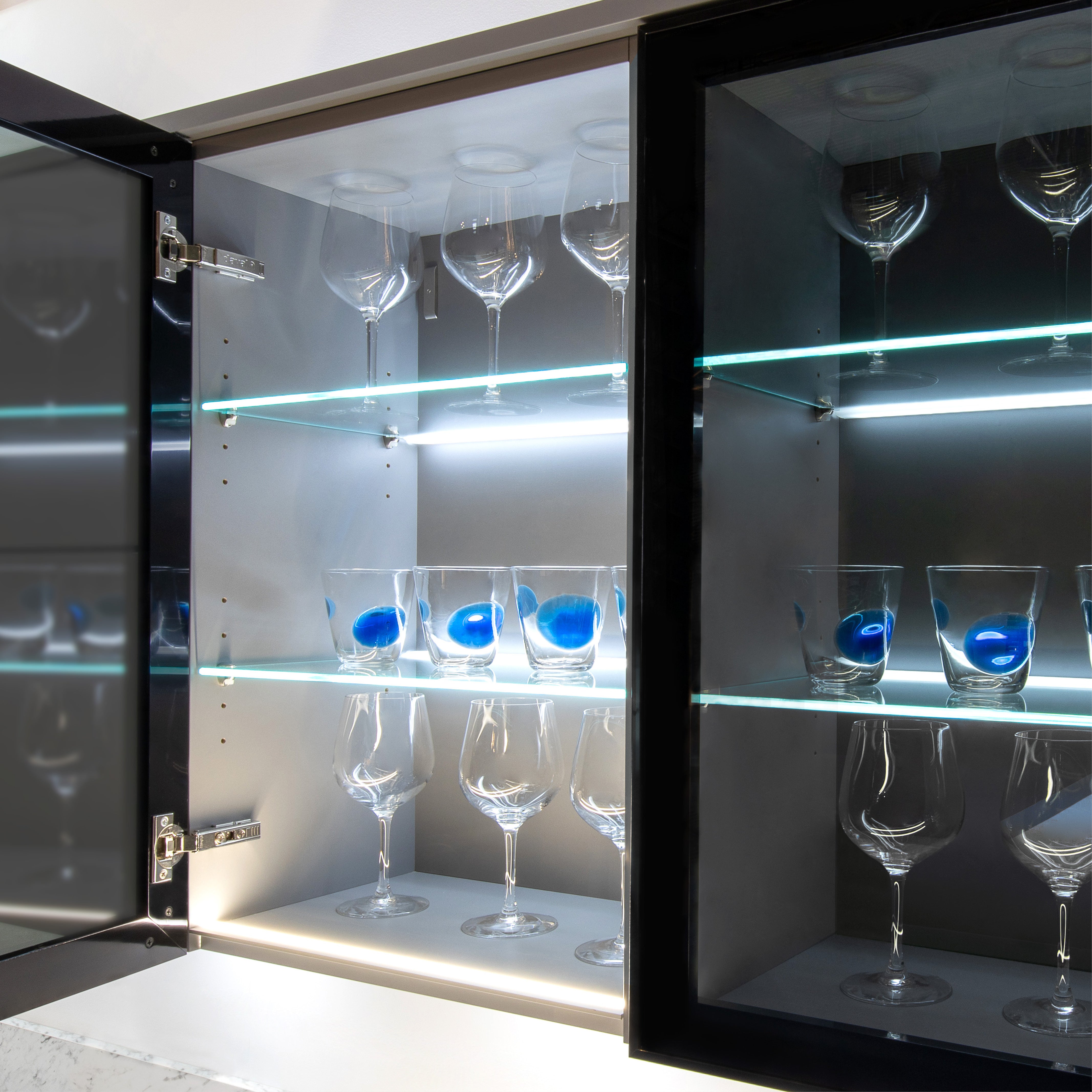

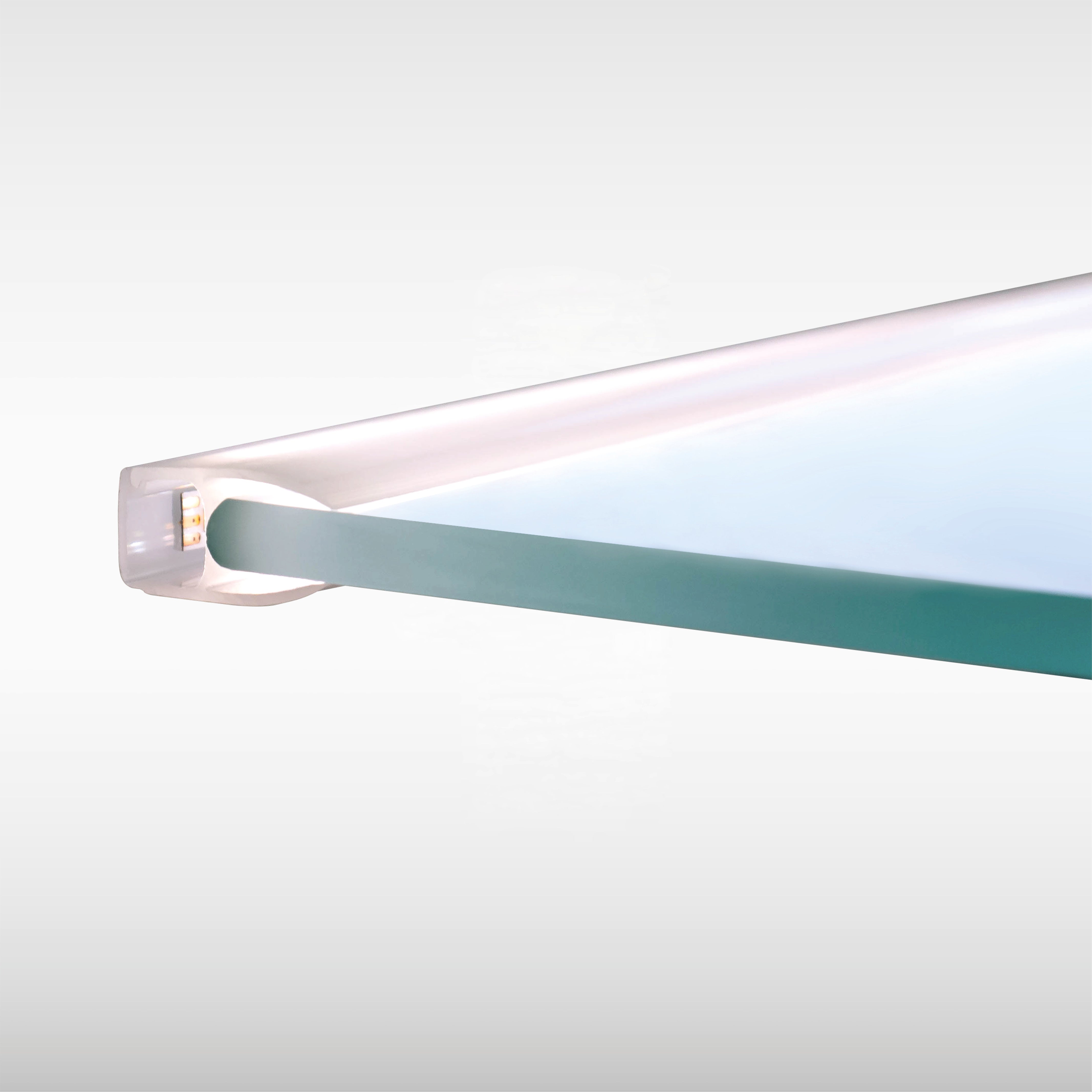

Glow Pro™ LED Glass Shelf Light, Adjustable White (CCT)Glow Pro™ LED Glass Shelf Light, Adjustable White (CCT)
Glow Pro™ LED Glass Shelf Light, Adjustable White (CCT)
Illuminated CCT glass shelf clip
Sale priceFrom £27.92
Torino™ Illuminated Glass Wall Shelf, 600mm or 900mmTorino™ Illuminated Glass Wall Shelf, 600mm or 900mm
Torino™ Illuminated Glass Wall Shelf, 600mm or 900mm
Contemporary, illuminated wall shelf
Sale priceFrom £124.01
Verso™ LED Drawer Light with IR SensorVerso™ LED Drawer Light with IR Sensor
Verso™ LED Drawer Light with IR Sensor
Natural white LED drawer light with IR sensor
Sale priceFrom £56.93
Beam™ Angled Aluminium LED Strip Profile, Opal CoverBeam™ Angled Aluminium LED Strip Profile, Opal Cover
Beam™ Angled Aluminium LED Strip Profile, Opal Cover
Angled profile ideal for illuminating cupboards
Sale priceFrom £11.10
Fino™ Surface Mounted Aluminium LED Strip Profile, Black or AluminiumFino™ Surface Mounted Aluminium LED Strip Profile, Black or Aluminium

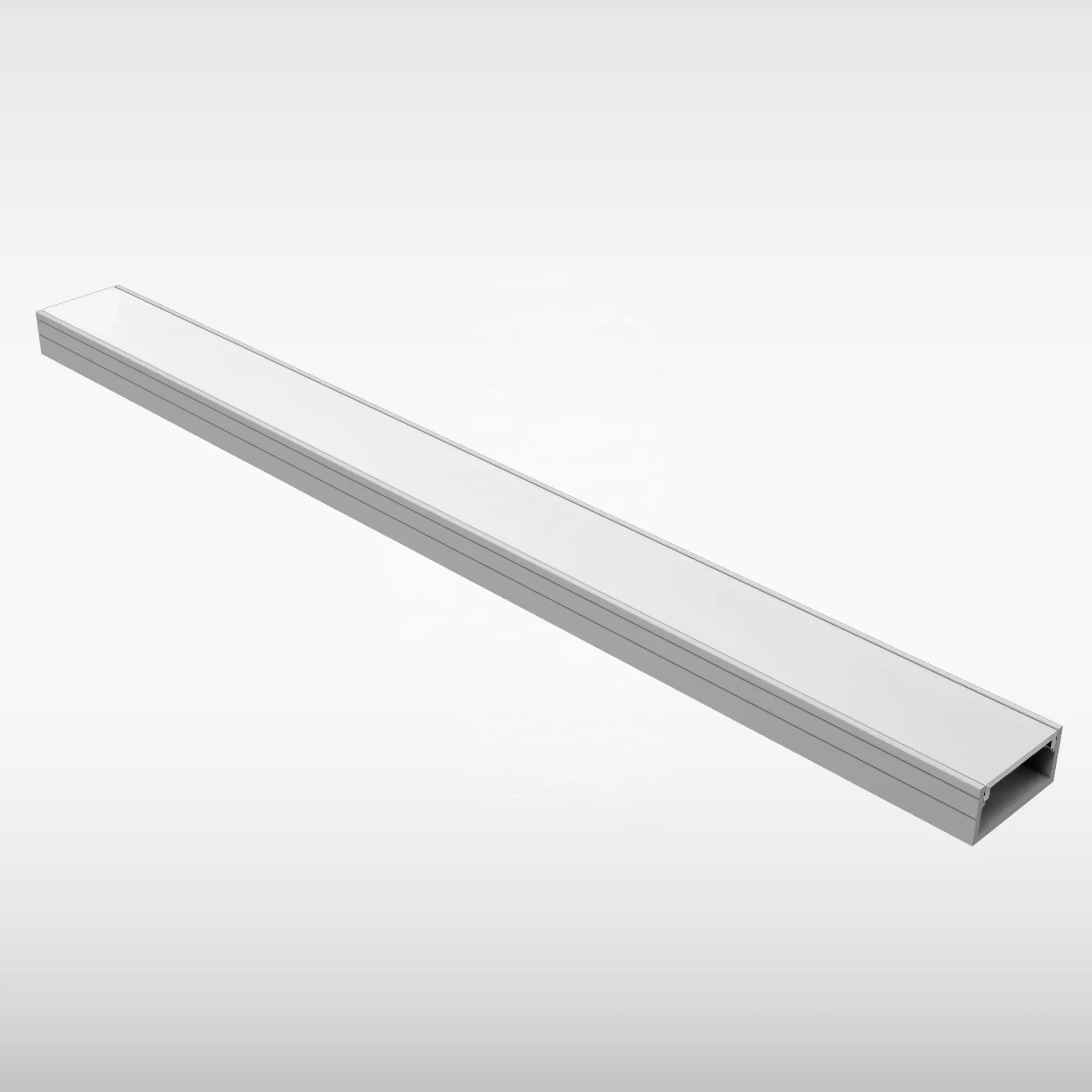

Fino™ Surface Mounted Aluminium LED Strip Profile, Black or Aluminium
Perfect for use inside cabinets or wardrobes
Sale priceFrom £10.94

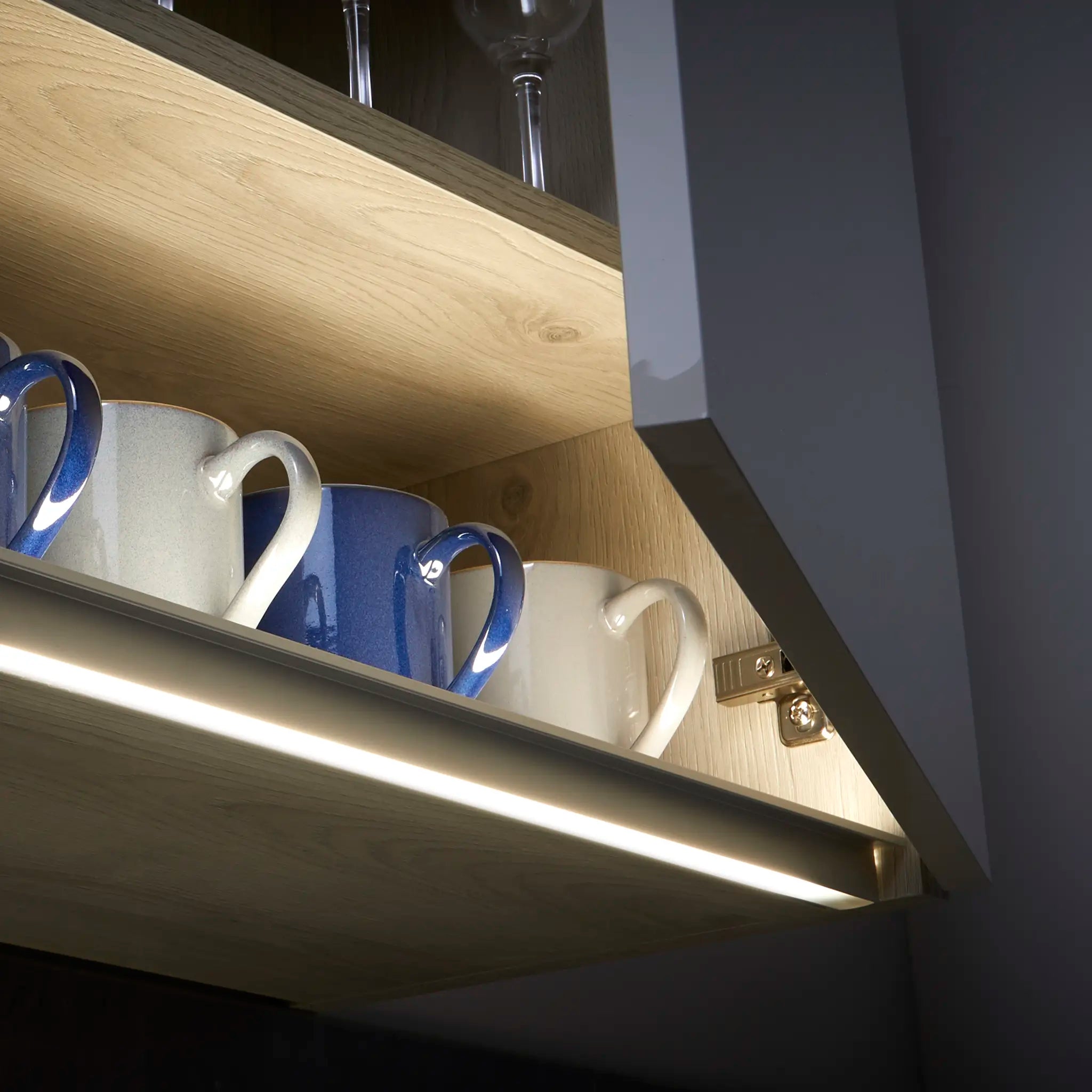

Manta™ Handleless Kitchen Aluminium LED Profile with Pre-fitted StripManta™ Handleless Kitchen Aluminium LED Profile with Pre-fitted Strip

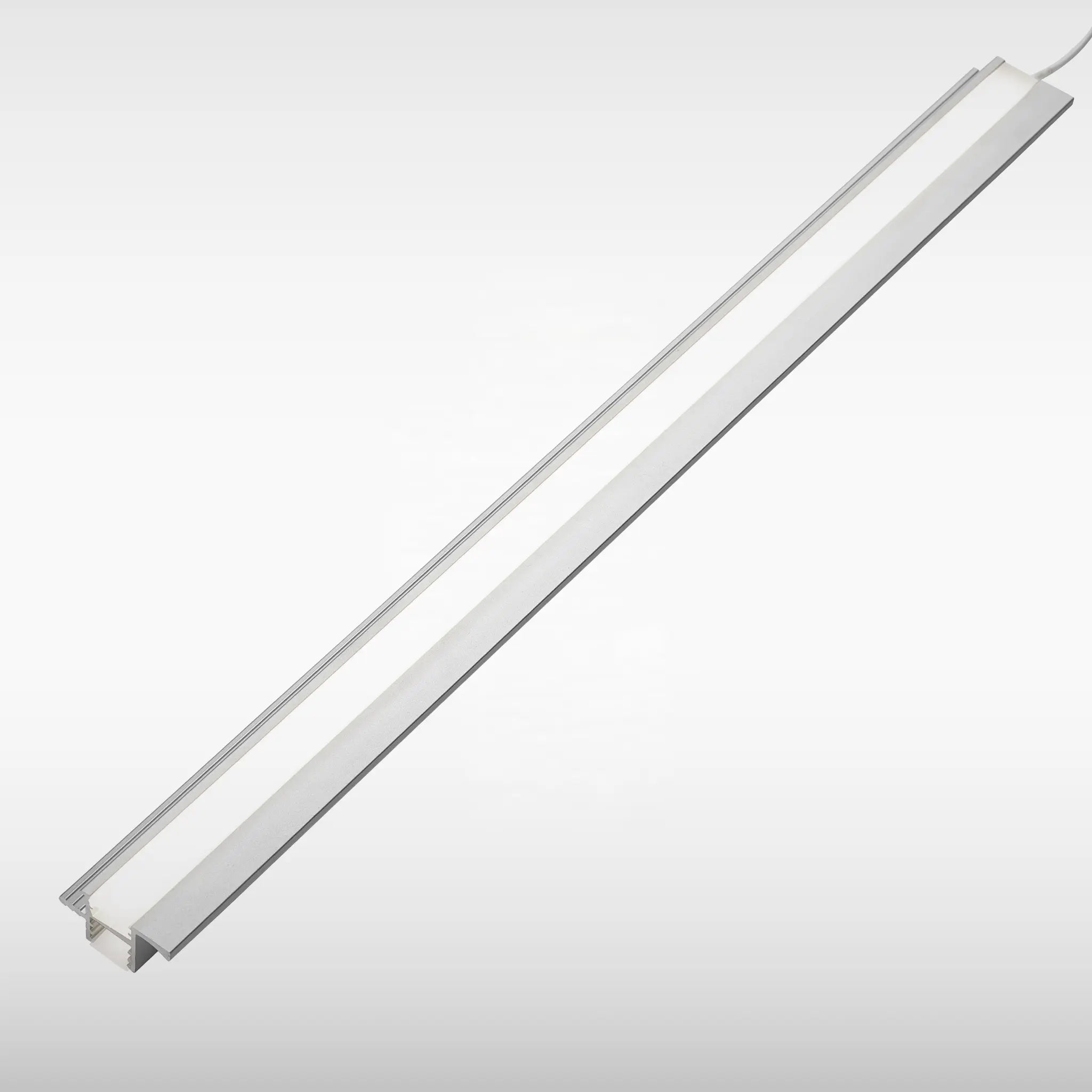

Manta™ Handleless Kitchen Aluminium LED Profile with Pre-fitted Strip
