Manta™ Handleless Kitchen Aluminium LED Profile with Pre-fitted Strip

SKU: SE27012C0

£35.82

Tax included. Shipping calculated at checkout

In stock

Manta is an integrated aluminium LED profile for handleless kitchens, with a cool white flexible strip pre-fitted. It lights through both the top and bottom of the profile. Fit it on the front edge of the internal cupboard base shelf or panel, or in the...

Read the full description

Need it cut to length? Our TrueFIT service does it for you

TrueFIT is our cutting and soldering service. We cut LED strip and profiles to your exact lengths, solder them and kit them with the right driver, with a 48-hour turnaround and a 7 year guarantee. Ideal for electricians, shopfitters and repeat projects.

Get a TrueFIT quote

Finish:

Aluminium

Size:

361mm

Variant

Quantity:

Free next working day delivery over £90

Order before 2pm Monday to Friday for same day despatch.

Need it cut to length? Our TrueFIT service cuts, solders and kits this to your exact lengths, with a 48-hour turnaround and a 7 year guarantee. Get a TrueFIT quote

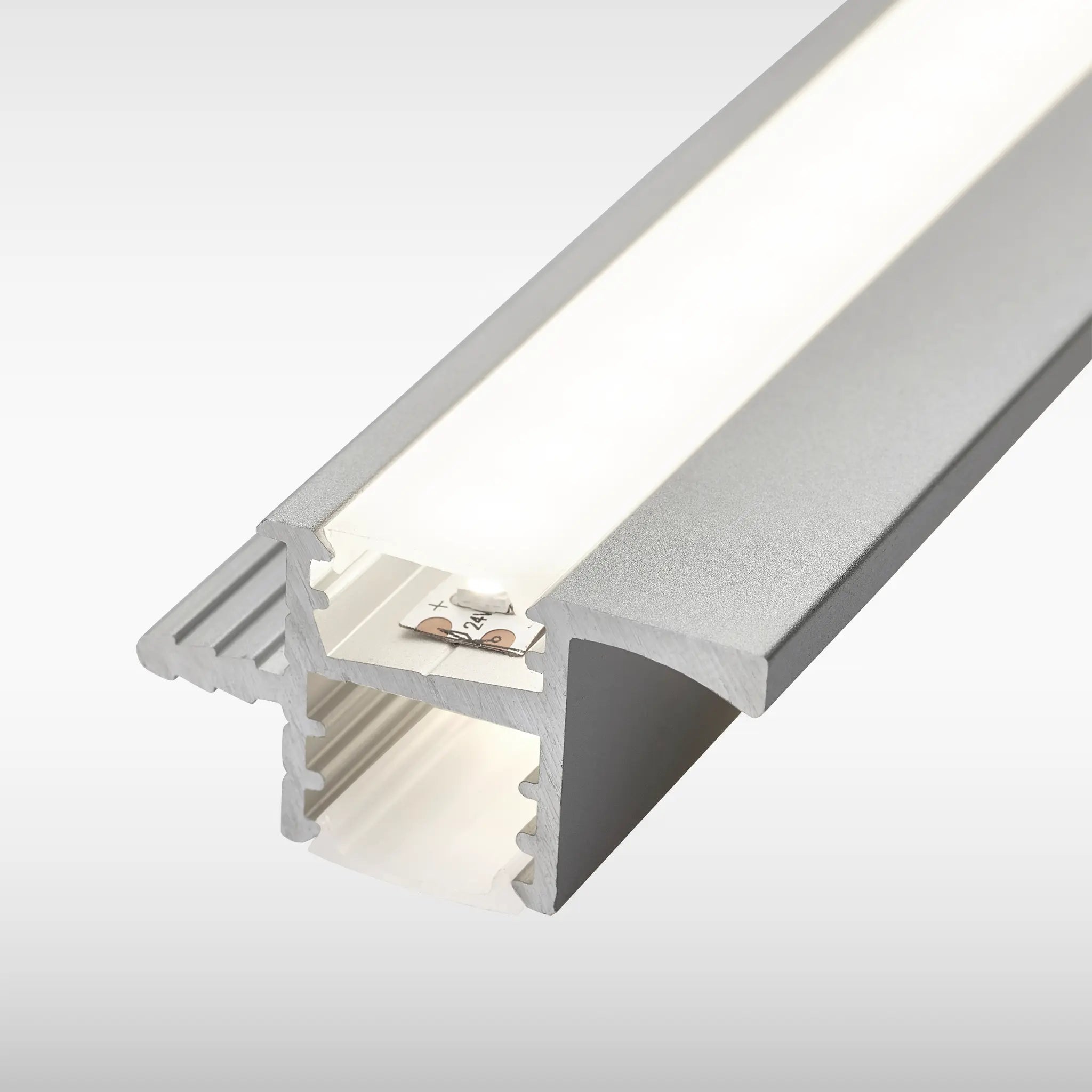

Manta is an integrated aluminium LED profile for handleless kitchens, with a cool white flexible strip pre-fitted. It lights through both the top and bottom of the profile.

Fit it on the front edge of the internal cupboard base shelf or panel, or in the handleless channel, to light both inside the cupboard and down to the worktop. The diffused cover gives an even spread of light with no visible LED points, and it works with the Sensio single colour receiver for dimming.

A truly integrated lighting profile for handleless kitchens, lighting both through the top and bottom of the profile
Pre-fitted cool white flexible strip
Installed on the front edge of the internal cupboard base shelf/panel or in the handleless channel to illuminate both inside the cupboard and down to the worktop
Diffused cover ensures an even spread of light and no visible LED points
Compatible with Sensio single-colour receiver to enable dimming functionality
Available in 8 lengths

Specification

Finish

Aluminium

Voltage

24V

Wattage

6.4W | 7.4W | 8.4W | 10.3W | 14.3W | 15.4W | 17.3W | 21.1W

Lumens

503 lm | 570 lm | 666 lm | 808 lm | 1070 lm | 1225 lm | 1322 lm | 1606 lm

Kelvins

4500K

Light Technology

Single Colour (Cool White)

Beam Angle

120°

Cable Length

2000mm

Dimensions

361mm x 39mm x 20.7mm | 411mm x 39mm x 20.7mm | 761mm x 39mm x 20.7mm | 861mm x 39mm x 20.7mm | 1161mm x 39mm x 20.7mm

Dimmable

Yes, with single colour receiver or smart driver

IP Rating

IP20

Warranty

7 Years

Material

Aluminium

Guides & Downloads

View and download the product files and technical specifications

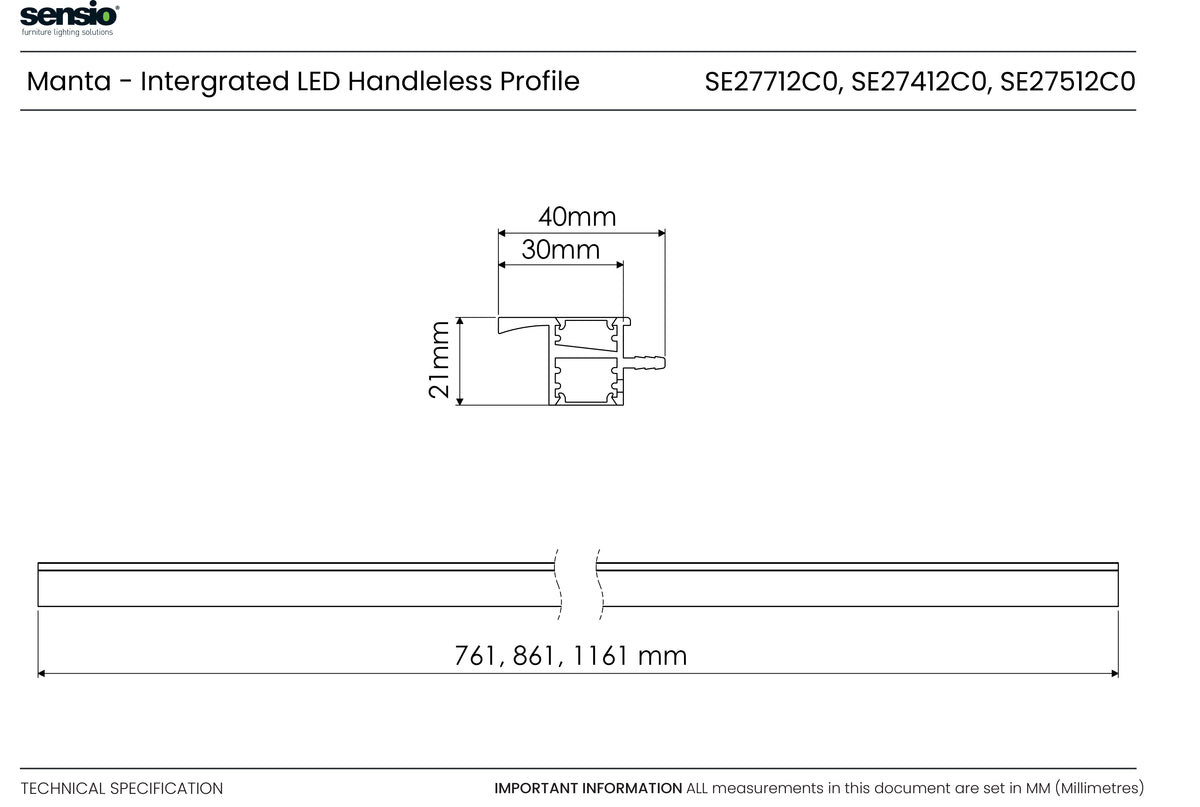

Product Dimensions

Driver Calculator

Questions and answers

Where is Manta fitted?

On the front edge of the internal cupboard base shelf or panel, or in the handleless channel. It lights both inside the cupboard and down to the worktop.

Does Manta come with an LED strip?

Yes. A cool white flexible strip comes pre-fitted.

Will I see the LED dots?

No. The diffused cover gives an even spread of light with no visible LED points.

Can Manta be dimmed?

Yes, when used with the Sensio single colour receiver.

What lengths does Manta come in?

361mm, 411mm, 761mm, 861mm and 1.2m, in an aluminium finish.

See all LED profiles.

Finish

Aluminium

Voltage

24V

Wattage

6.4W | 7.4W | 8.4W | 10.3W | 14.3W | 15.4W | 17.3W | 21.1W

Lumens

503 lm | 570 lm | 666 lm | 808 lm | 1070 lm | 1225 lm | 1322 lm | 1606 lm

Kelvins

4500K

Light Technology

Single Colour (Cool White)

Beam Angle

120°

Cable Length

2000mm

Dimensions

361mm x 39mm x 20.7mm | 411mm x 39mm x 20.7mm | 761mm x 39mm x 20.7mm | 861mm x 39mm x 20.7mm | 1161mm x 39mm x 20.7mm

Dimmable

Yes, with single colour receiver or smart driver

IP Rating

IP20

Warranty

7 Years

Material

Aluminium

Dedicated design

The Accent profile applies directly to the plinth top with a simple push fit. Housing the LED strip in this profile not only diffuses the light, but projects it forward to cast a wider spread across the floor.
