Zella™ Recessed Acrylic LED Strip Profile, Fully Diffused
Tax included.
Need it cut to length? Our TrueFIT service does it for you
Zella is a recessed acrylic LED strip profile for setting LED strips into cabinets with a seamless finish. The profile fully diffuses the light for a soft and even glow.
It is a simple push fit, and wide wings cover any router imperfections. Plastic side walls hold the strip to the bottom of the channel, and it takes flexible strips 8mm wide or more. It can be cut to any length, comes with rounded end caps and is rated IP20.
Acrylic Profile For Recessed Installation

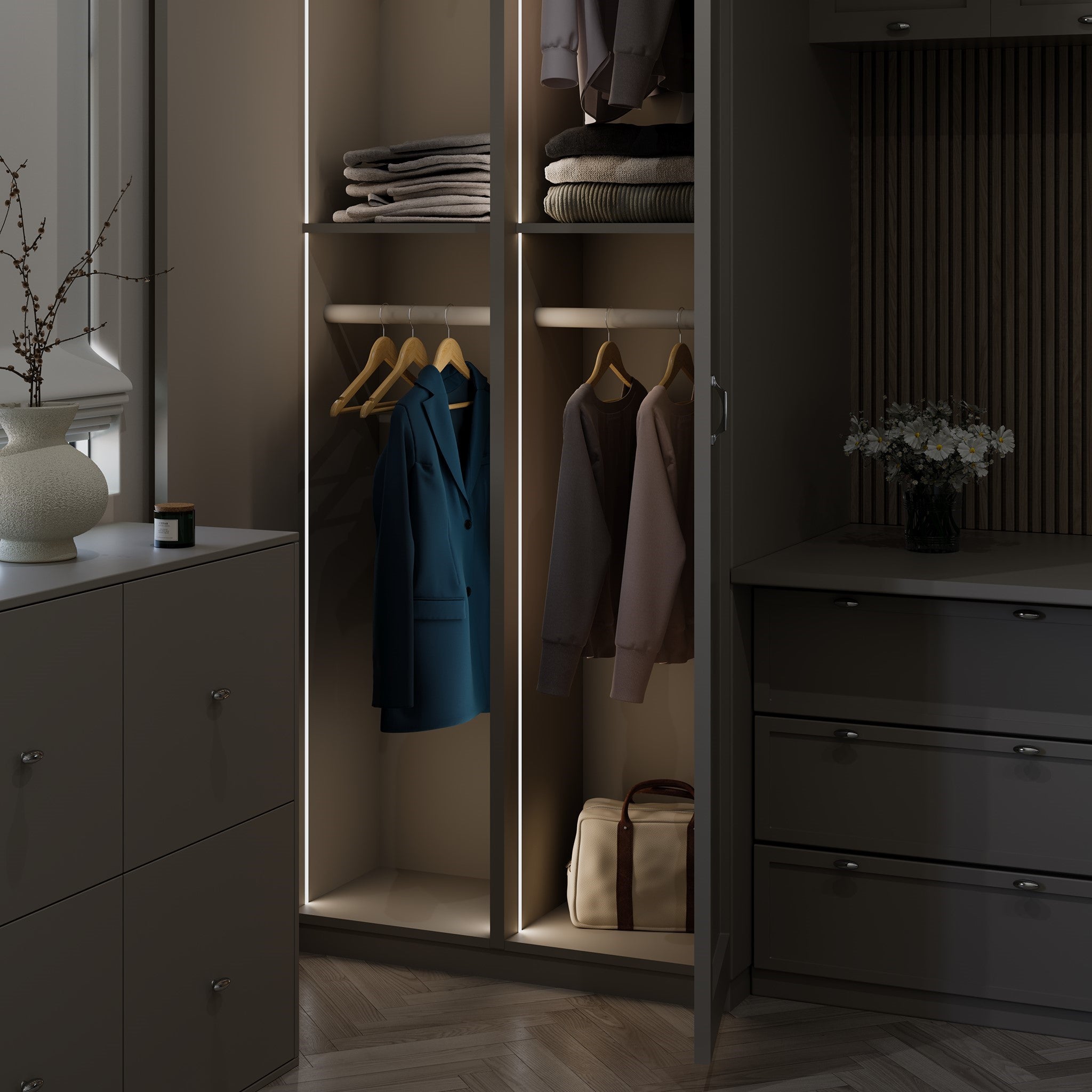

The Zella profile is designed for recessing strips into cabinets with a seamless finish. Providing a fully diffused light for a soft and even glow.
- Simple push-fit installation
- Supplied with rounded end caps for optional use
- Can be cut to any desired length
- Wide wings cover any router imperfections
- Profile finish fully diffuses light

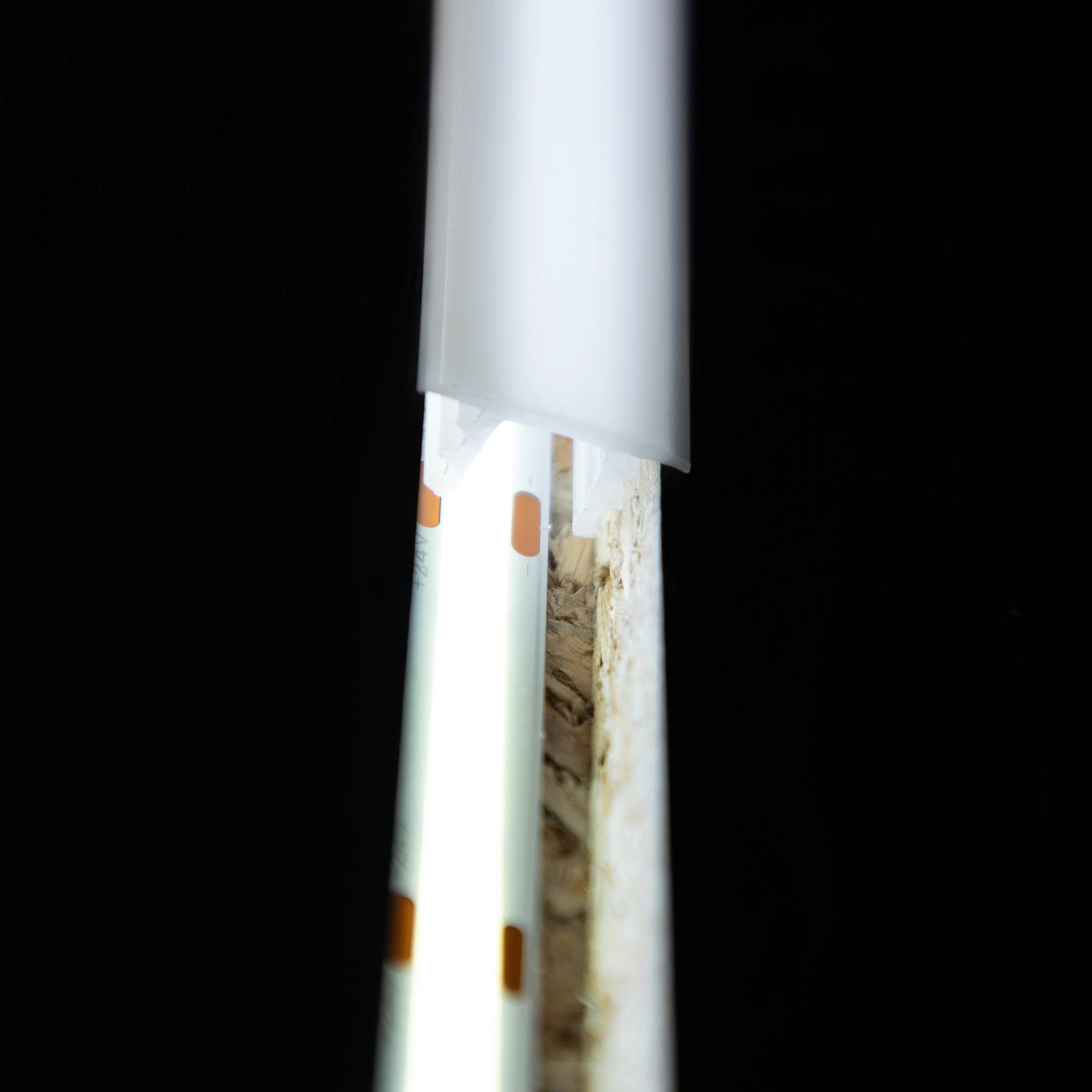

- Plastic side walls pin the flexible strip to the bottom of the channel
- Compatible with flexible strips of an 8mm width or more

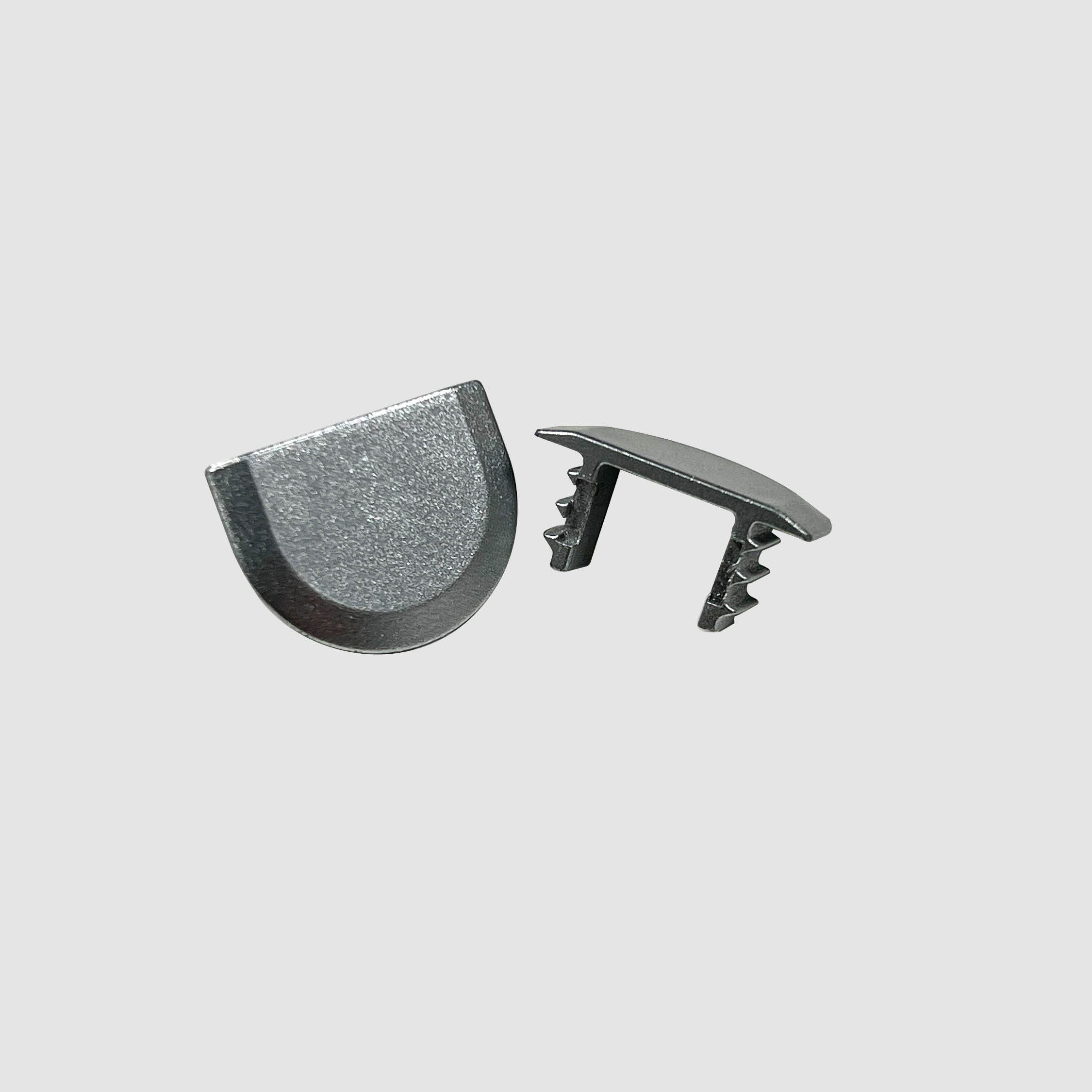

- Comes with rounded end caps for a clean finish to routed channel

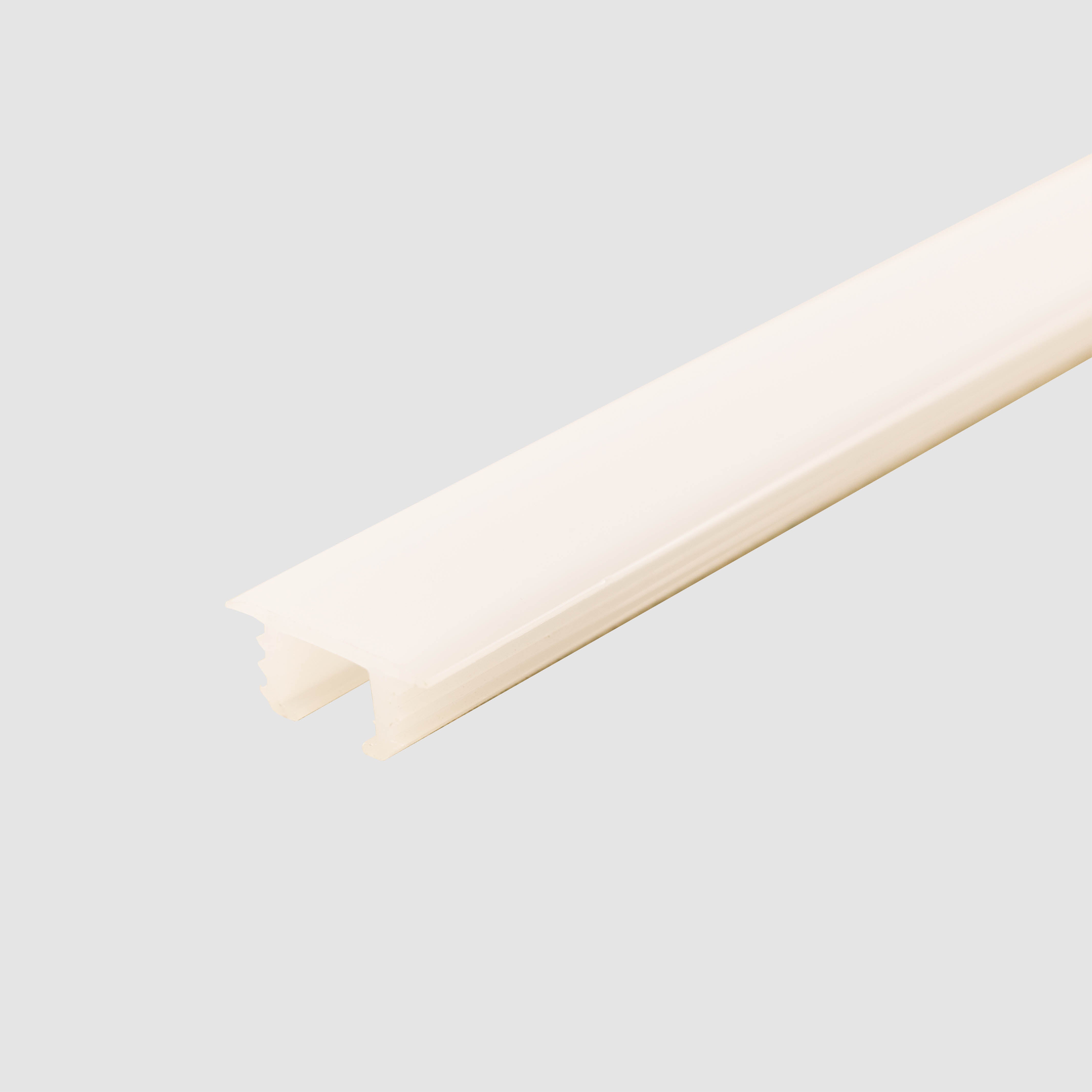

- Available in 1.5m or 2.5m lengths
- IP Rating: IP20
Specification
Specification
Guides & Downloads
Guides & Downloads
View and download the product files and technical specifications

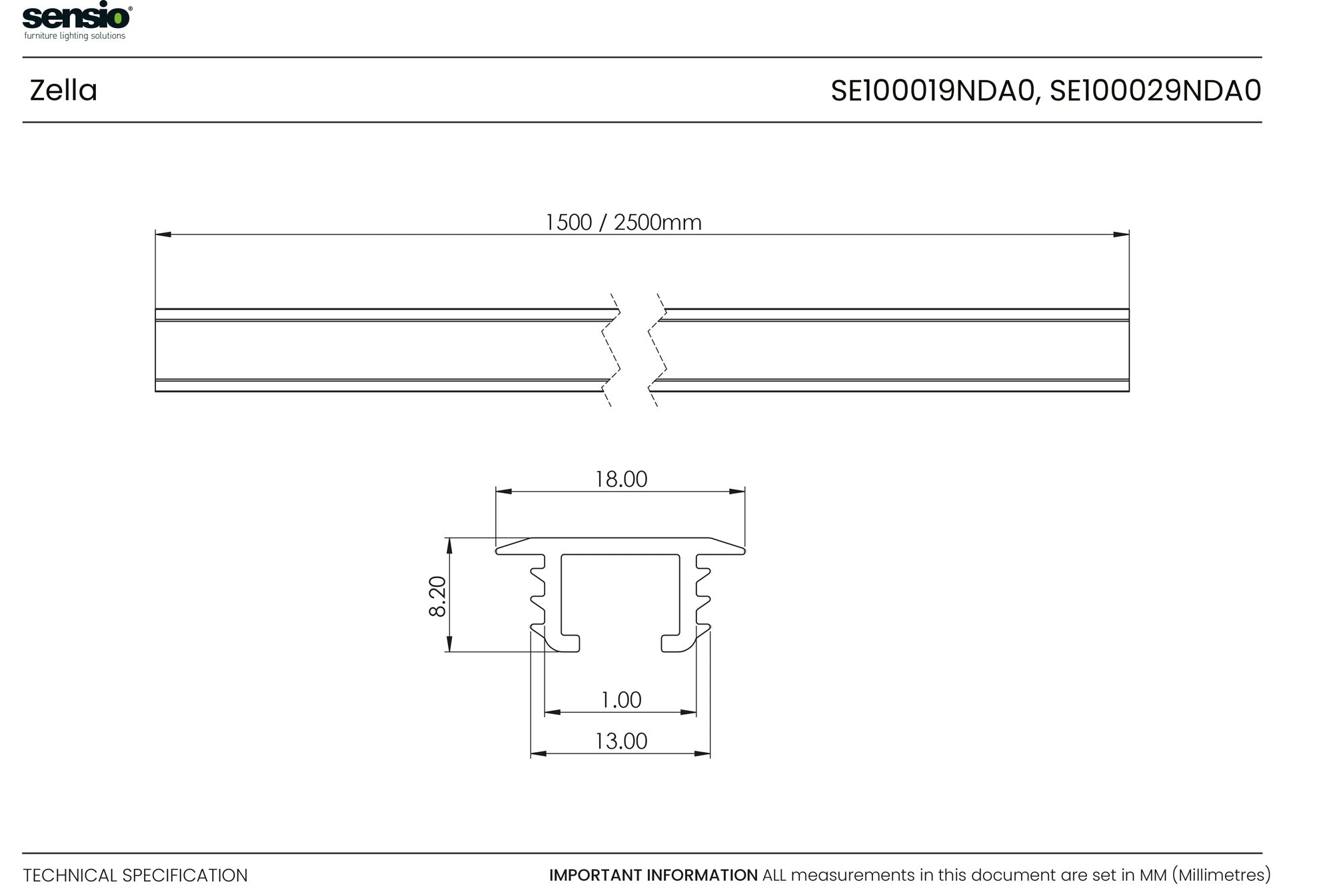

Product Dimensions
Questions and answers
Guides & Downloads
View and download the product files and technical specifications
This product has no reviews yet.
Simple installation
Step 1

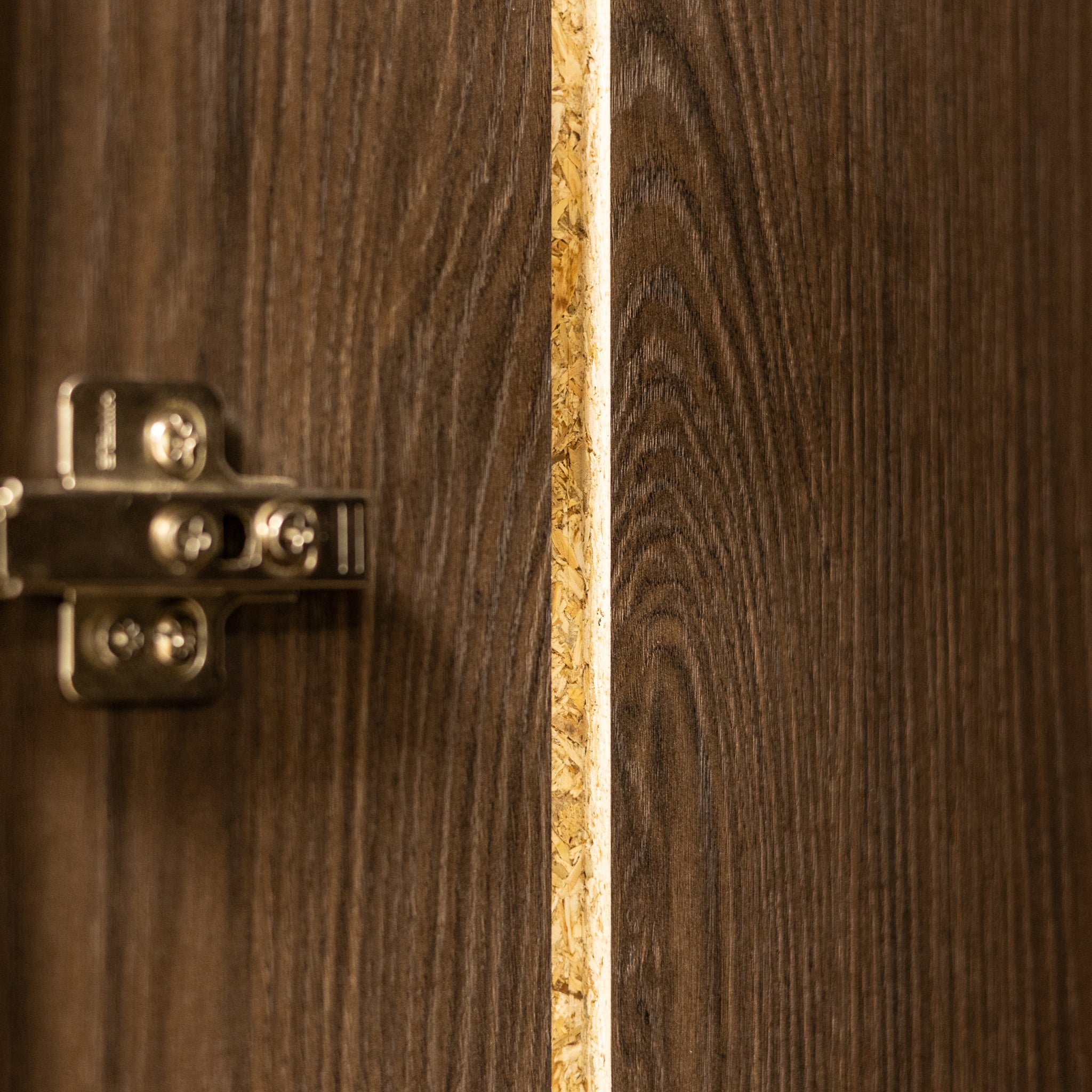

Cut a channel of 12.7mm in the cabinet or wardrobe you are installing the Zella
Step 2

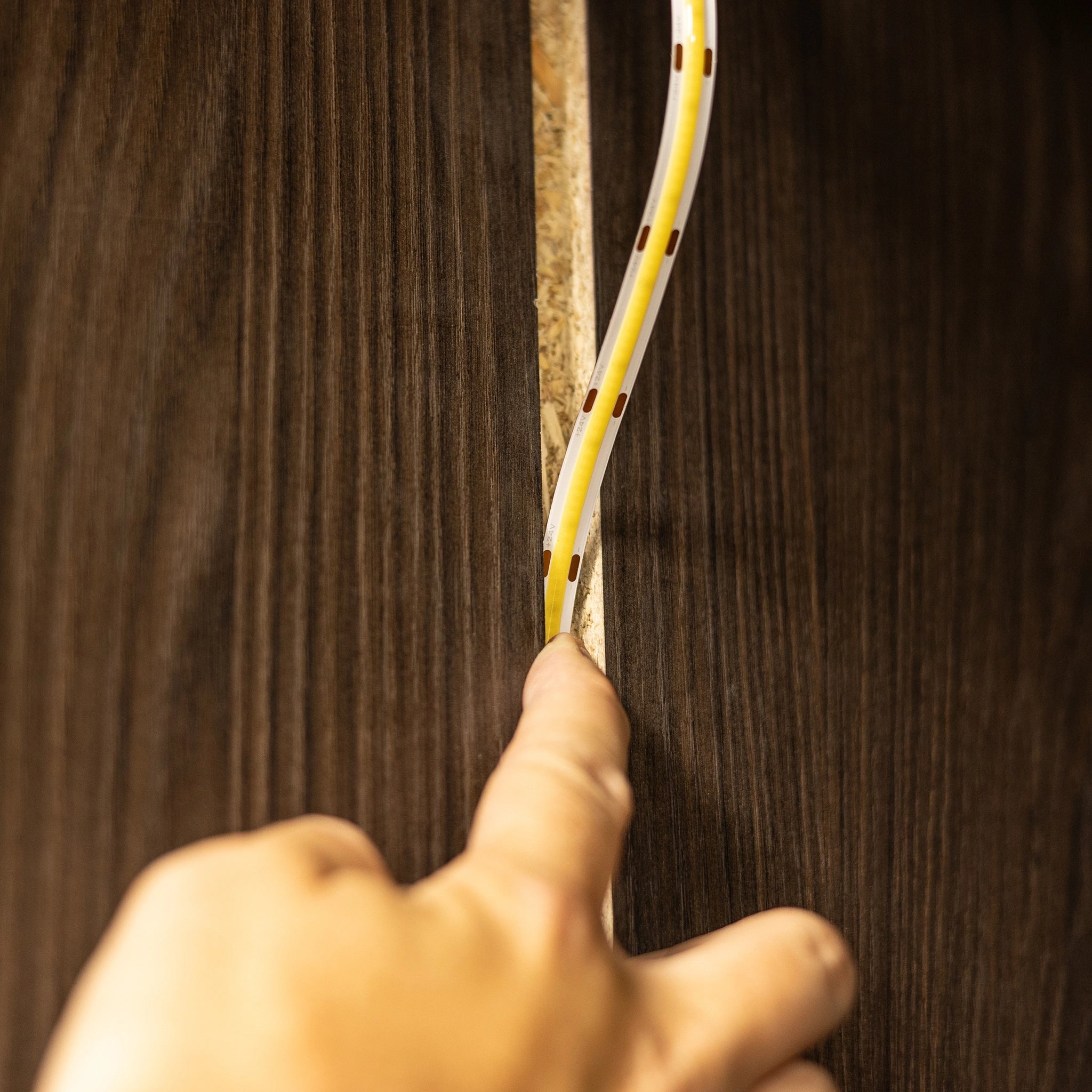

Secure your flexible LED strip using the adhesive VHB tape
Step 3

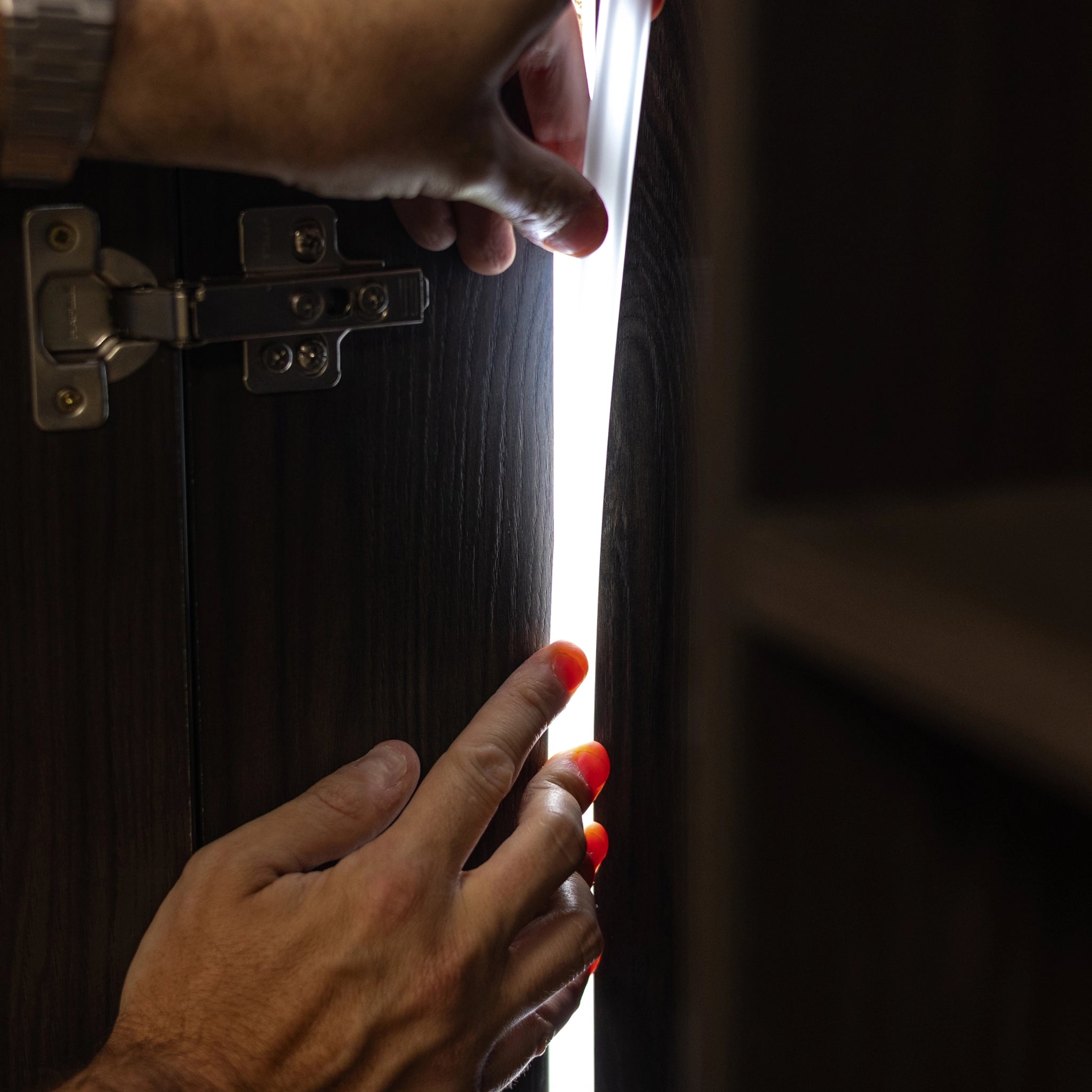

Easily push the Zella into the channel. Use the end caps to finish your installation cleanly.
High quality finish
Wide wings cover any router imperfections and provide a flush recessed finish.
Considered application
Can be cut to any desired length.
Registered Design Rights - 6341999
Designed in the UK

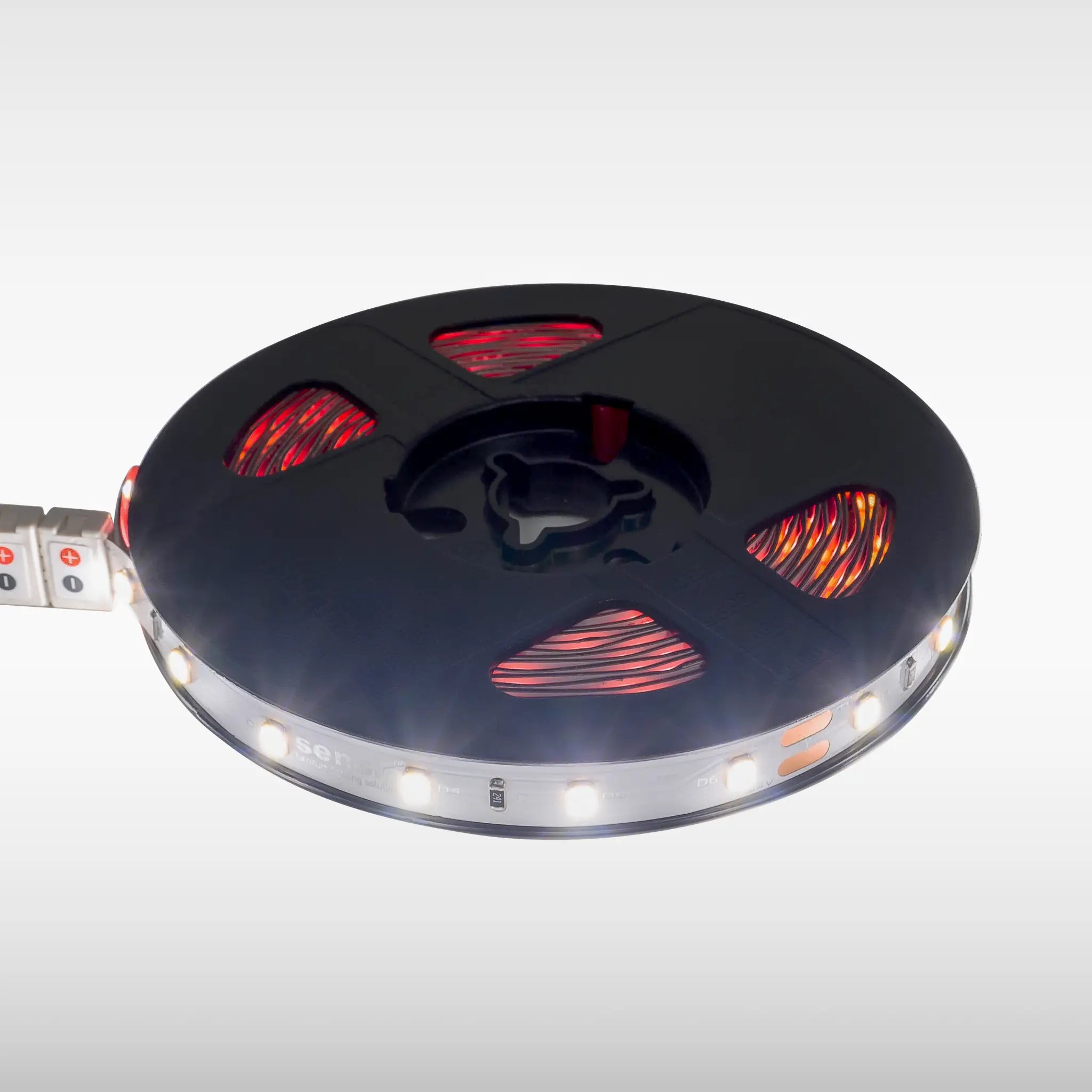

Compatible flexible strips
Nano style 3.5mm flexible LED strip

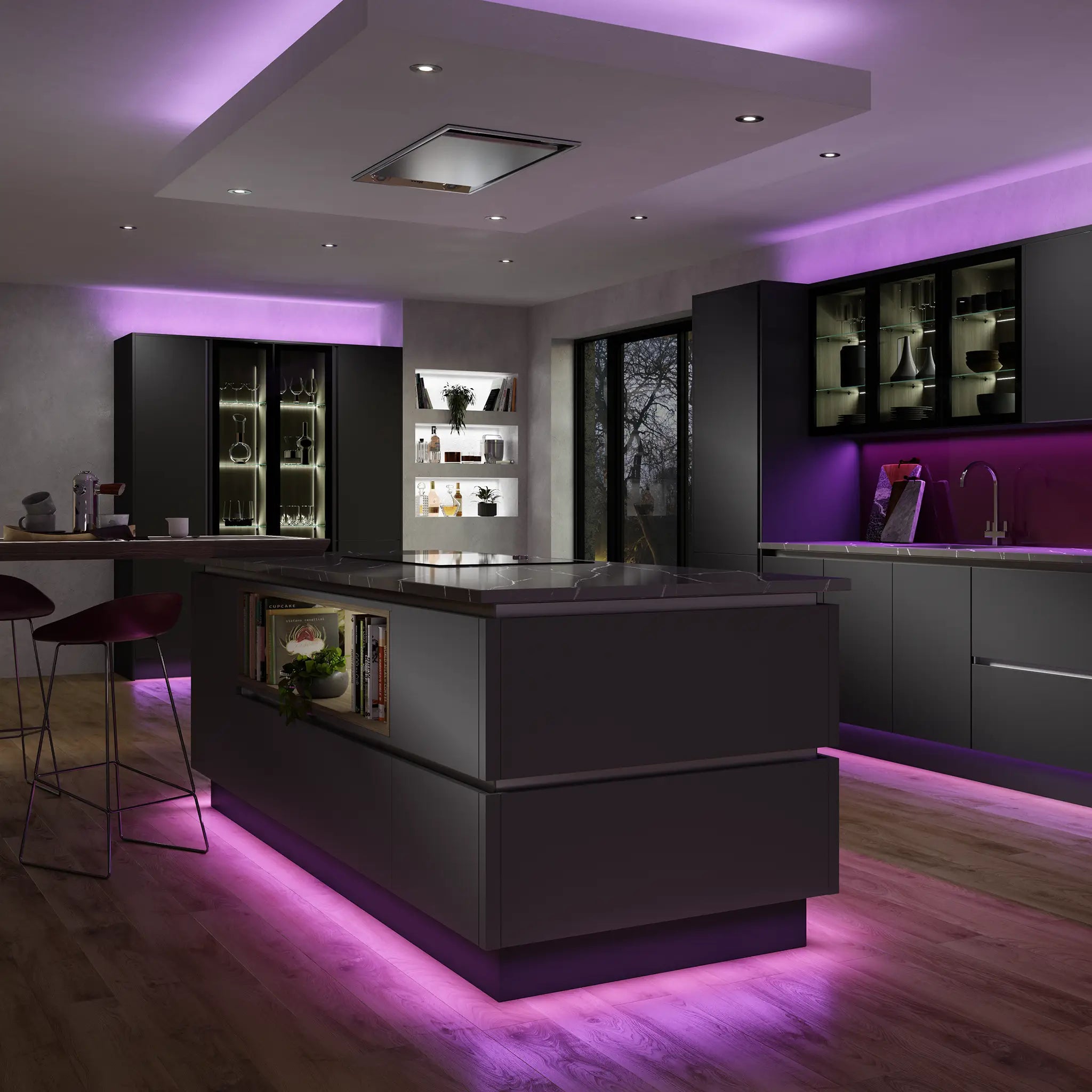

Diffused, COB, RGBCCT flexible strip
Free-cut, COB, flexible strip
Free cut, COB, CCT flexible strip

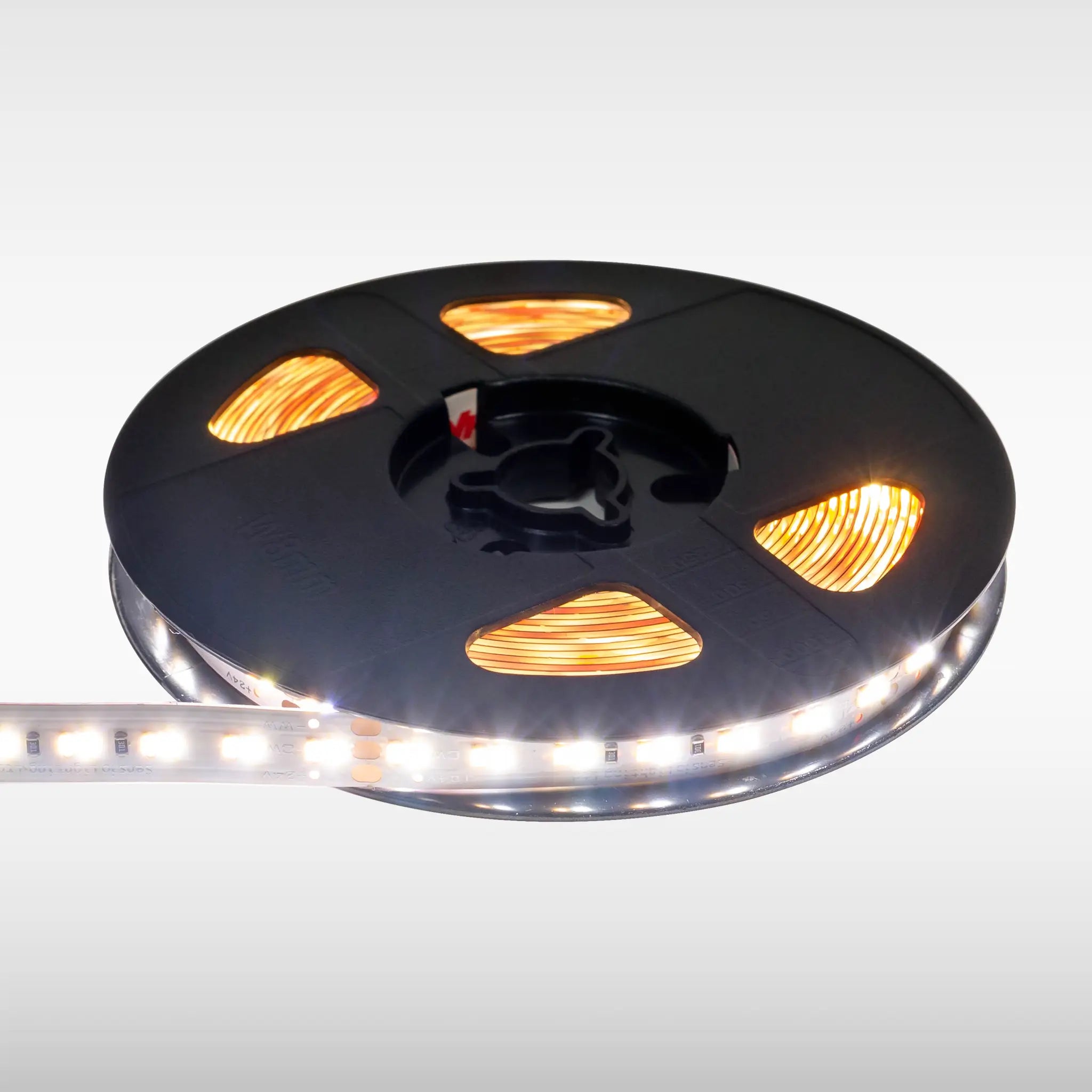

A versatile, single colour, flexible LED strip
Applies seamlessly around flat corners
