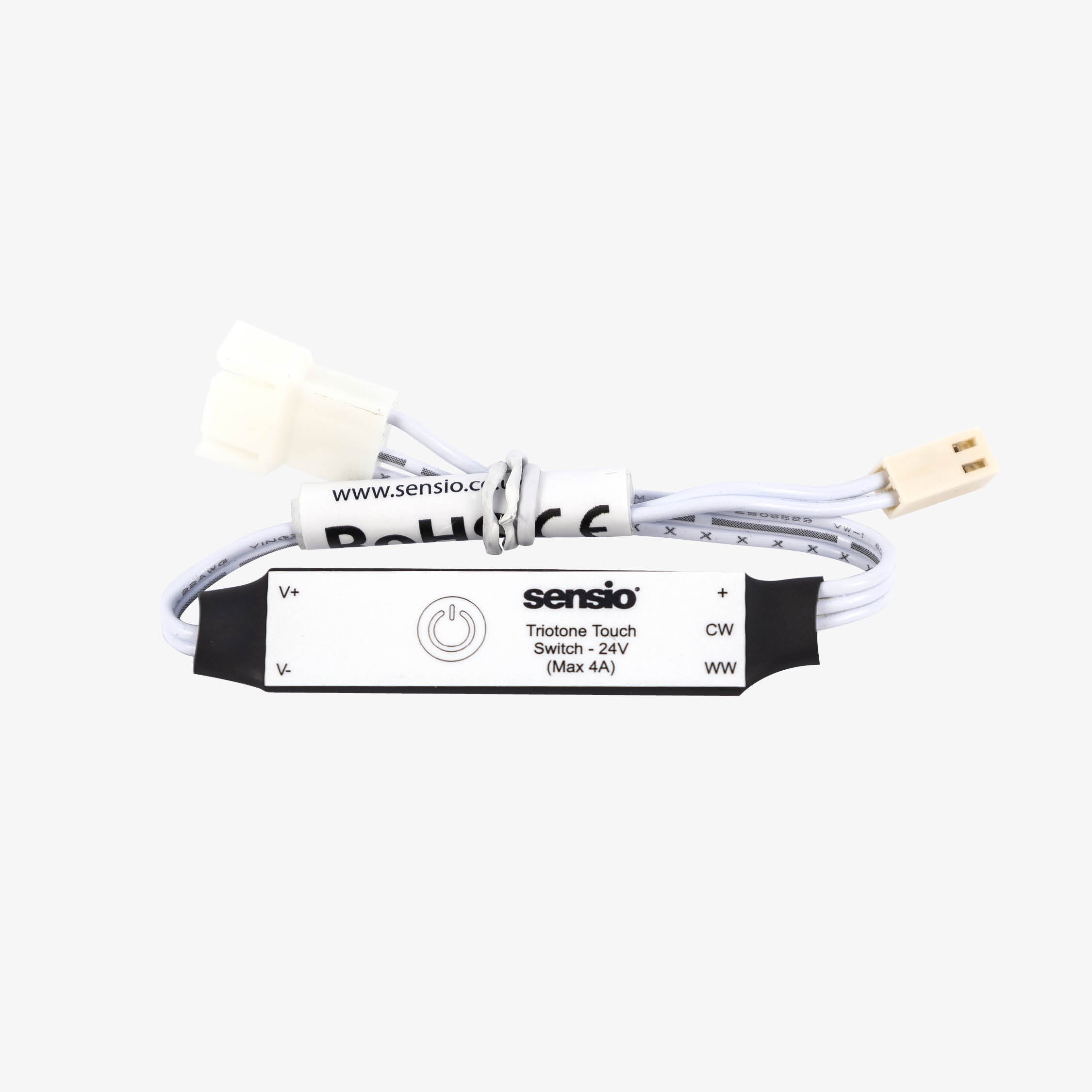

TrioTone® Touch Switch
Tax included.
Simplifies colour selection
The TrioTone® controller allows you to select cool white, natural white or warm white with the touch of a button. The controller plugs directly into any standard LED driver, making any CCT product TrioTone® compatible. This enables the light source to be matched to any interior design style, as well as providing the flexibility to be changed in the future.
- Cost-effective solution without compromising on functionality
- Operation simplicity - A plug and Play solution
- No need for remote, App or smart driver
- Equipped with a memory function that retains the last used setting
- Control temperature settings of CCT strip at 3000K, 4000K, and 6000K
- Compatible with all Sensio CCT strips
- Can be powered from a standard Sensio Titan+ Driver
Registered Design Right: 6371777
Specification
- Wattage: 2W (Per unit)
- Voltage: 24V
- Lumens: 170-190 lm
Cost Effective
Easy solution for any installation without compromising on functionality. Just plug the switch in to the driver, connect your CCT light and choose your desired colour.
Makes Installation Easy

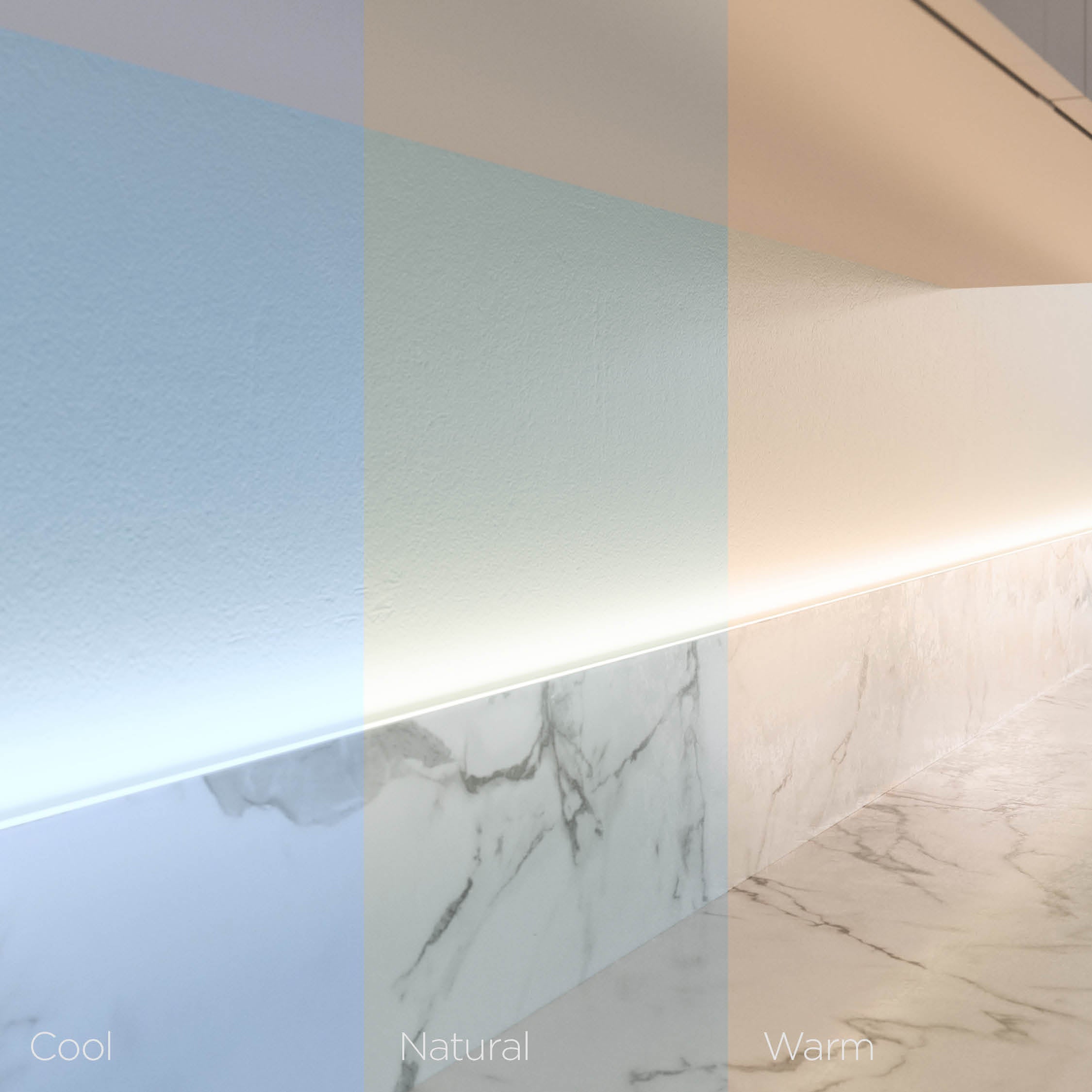

No need for additional controls such as a remote or app to choose the colour temperature. Just a simple tap of the touch button at installation and select between cool, natural or warm white.
Get the job done

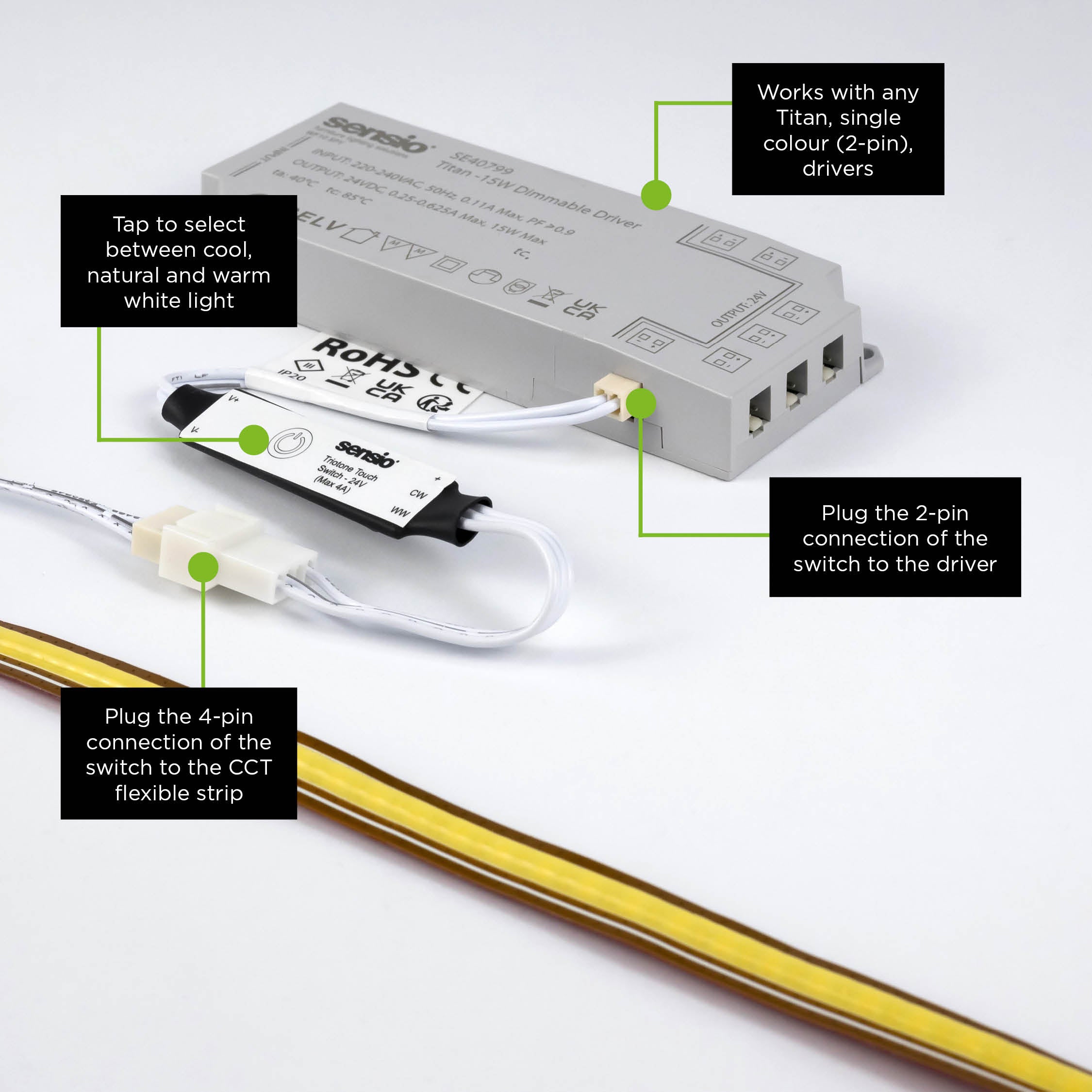

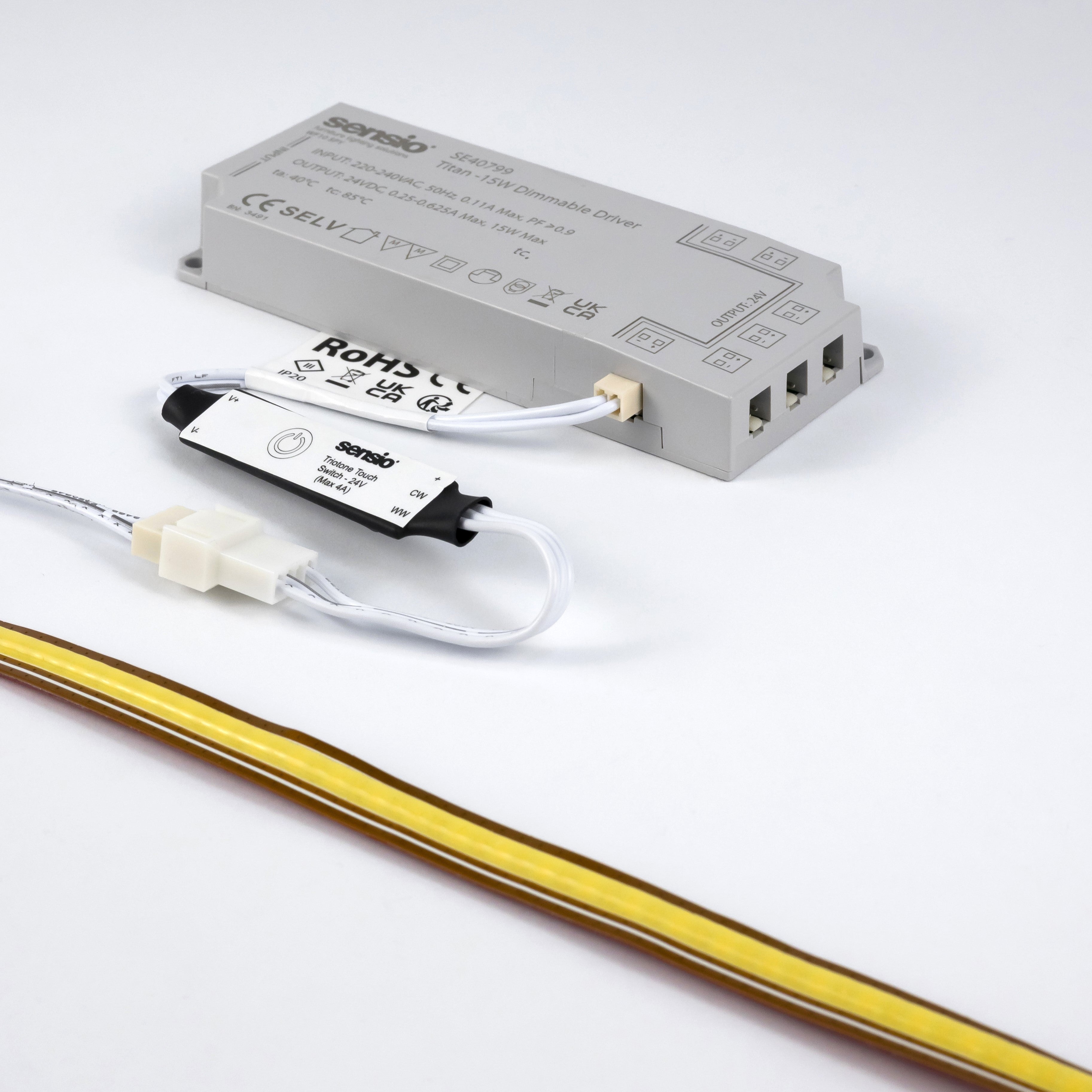

Suggested Installation
Here is a package we'd recommend for setting up the TrioTone® Switch.
Titan+ Driver
Choose the correct driver for the LED strip you want to control. This model comes in 6W, 15W, 30W and 60W so we have options to cover any job.
TrioTone® Switch
Plug the TrioTone® Switch in to your Titan+ driver using the 2-pin connection.

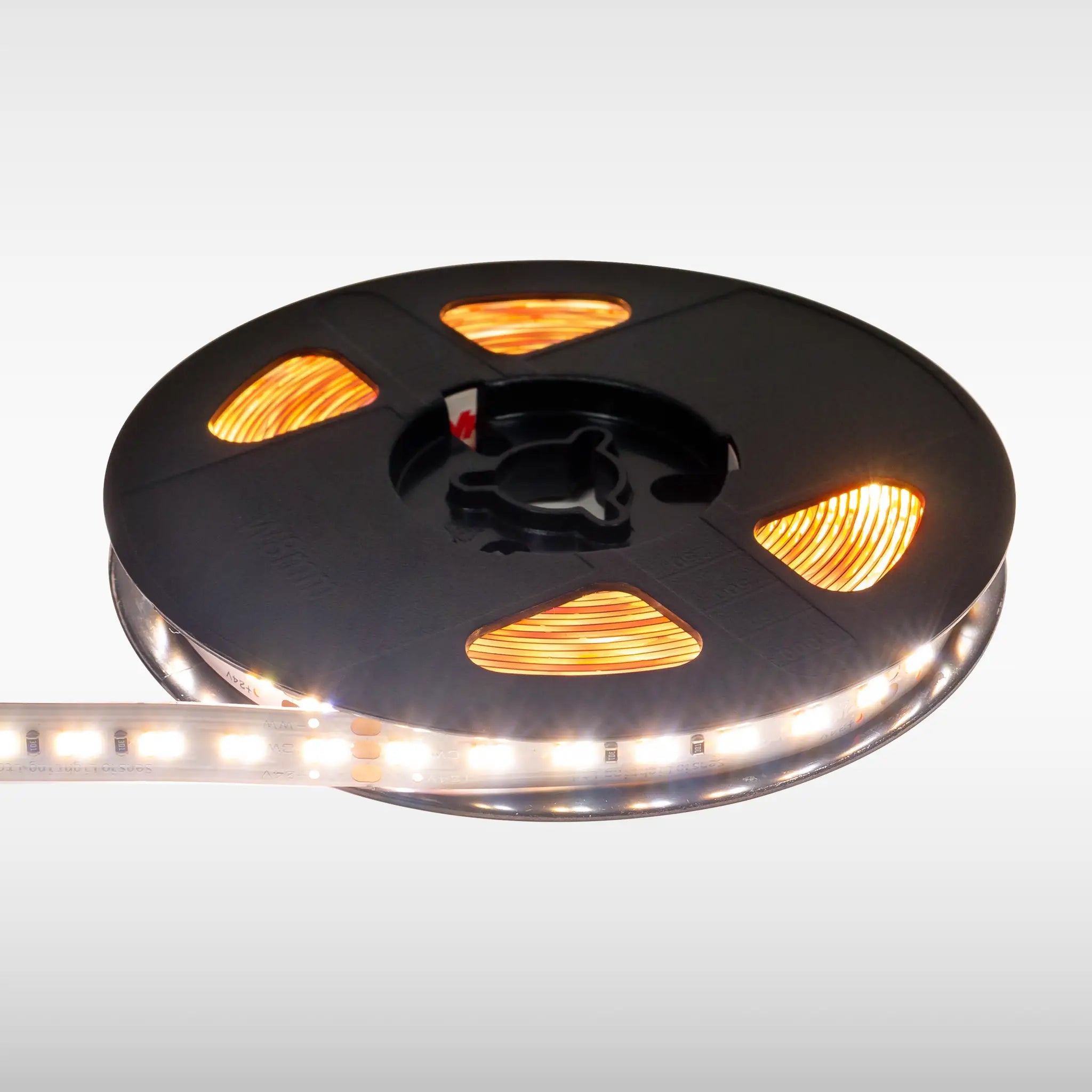

CCT Flexible Strip
Join the flexible strip up to the 4-pin connection on the TrioTone® switch and tap the button to change the colour temperature.
Registered Design Right: 6371777
Designed in the UK

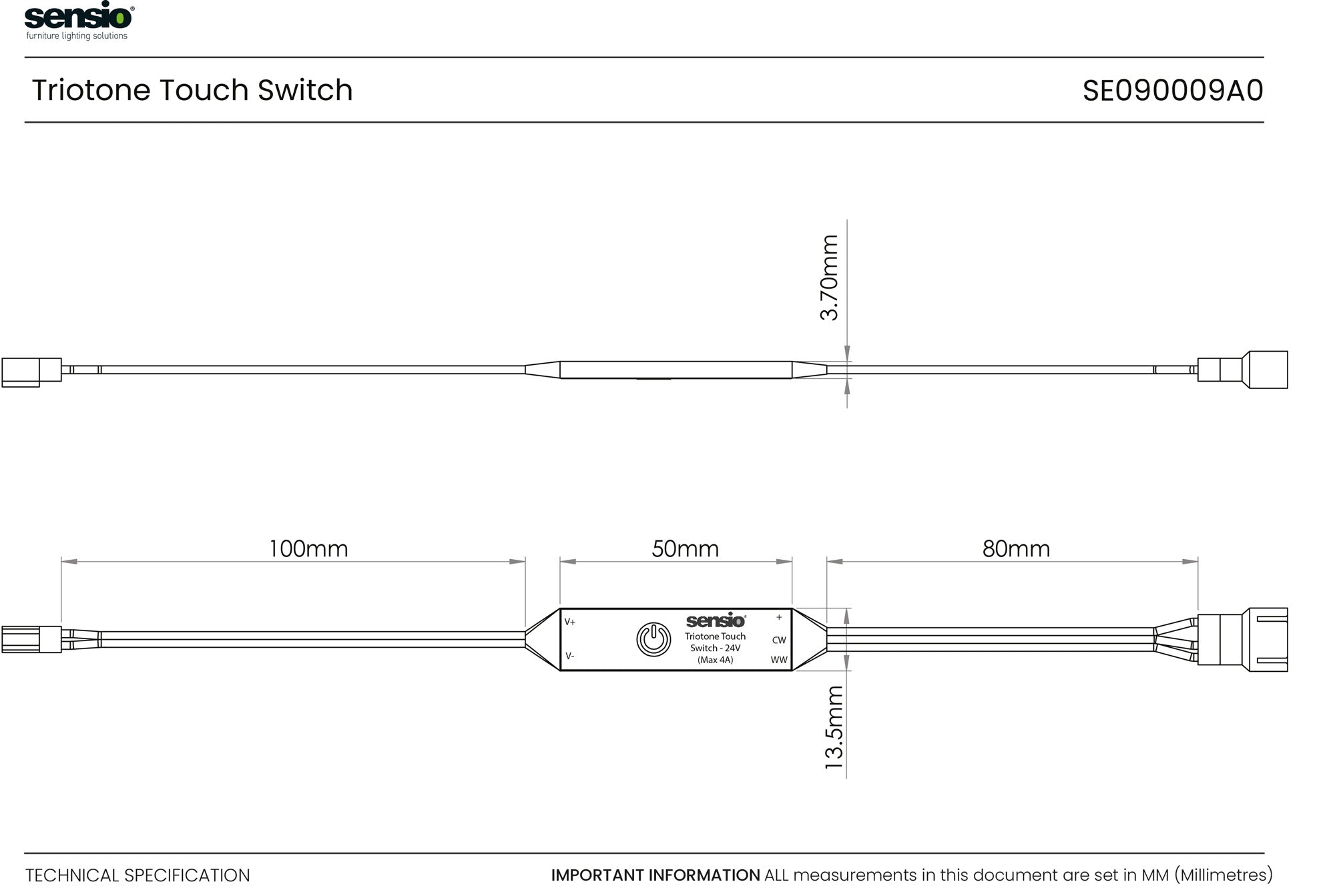

Product specification
8mm x 13.5mm x 277mm
180mm
TrioTone®
Touch Sensor
IP20
