Connex TrioTone® Mains Under Cabinet LED Light

Connex TrioTone® Mains Under Cabinet LED Light

SKU: SE100390

£23.86

Tax included.

Only 8 units left

Connex TrioTone® is a mains powered LED under cabinet light for kitchen task lighting. This linear under cupboard light lets you choose from three shades of white with a switch, and the diffused casing hides the LED dots. It comes with 1.5m of bare ended...

Read the full description

Light Colour:

TrioTone®

Finish:

White

Size:

222mm

Variant

Quantity:

It comes with 1.5m of bare ended mains cable. Wire it to a mains wall switch or use the rocker switch on each light. Lights link directly or with joining cables (sold separately) for gaps and corners. Five lengths from 222mm to 904mm, in a white finish.

Ideal for under cabinet task lighting
TrioTone® technology allows you to select cool white, natural white or warm white with a flick of a switch
Diffused casing – no visible LED dots
Mains powered
Can be interlinked directly or by using joining cable for spacing & corners to achieve optimum run of lights
Supplied with 1.5m of bare ended mains cable for simple installation
Can be wired into a mains wall switch for easy control or operated individually by a simple rocker switch

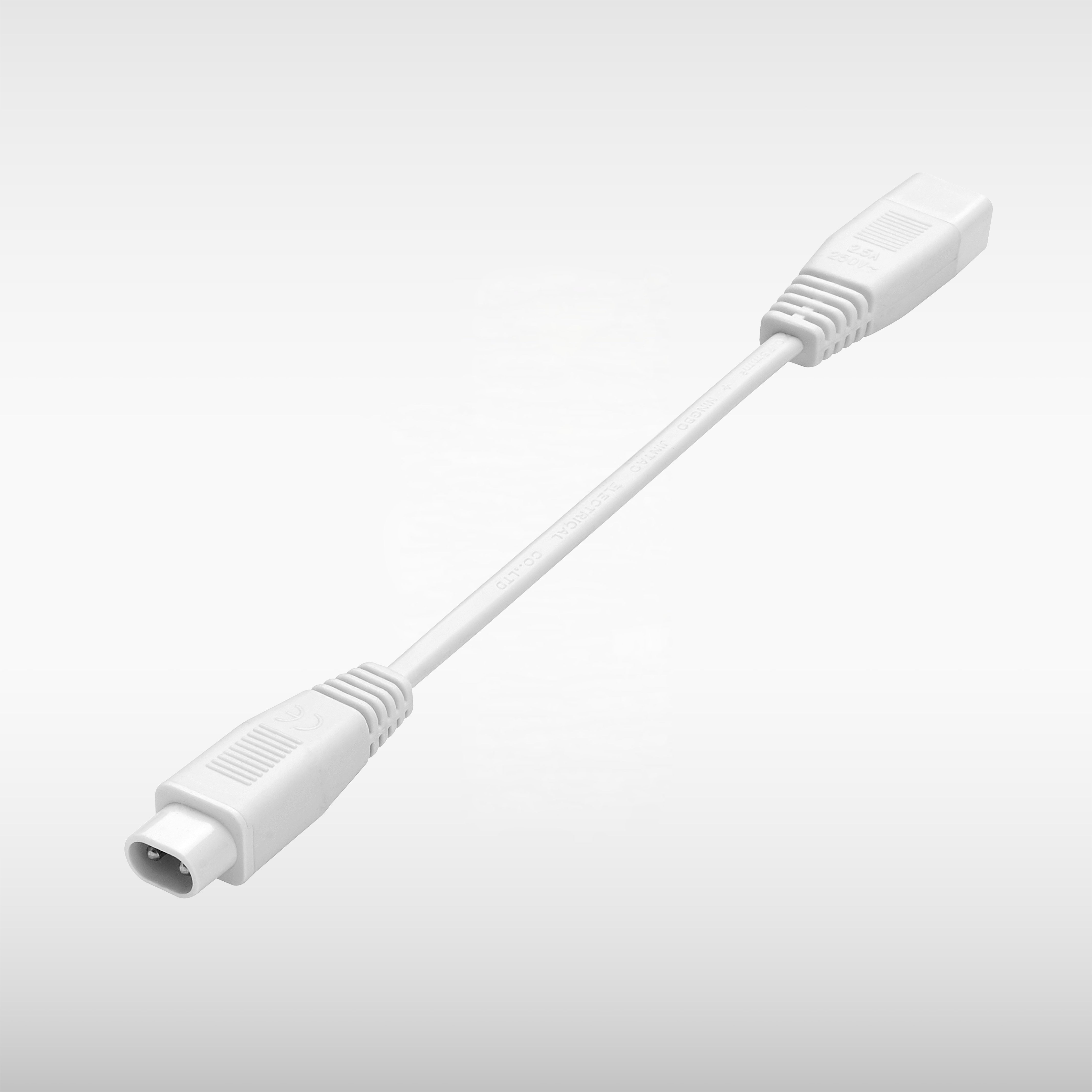

Joining cables (sold separately) allow for corner connections and intermittent runs
Available in 5 lengths: 222mm, 343mm, 524mm, 623mm and 904mm

Specification

Finish

White

Control

Rocker Switch

Voltage

240V

Wattage

3W | 5W | 9W | 12W | 16W

Lumens

80 lm/ m, 95 lm/m, 85 lm/m

Kelvins

3000K, 4000K, 5000K

Light Technology

TrioTone®

Beam Angle

120°

Cable Length

1500mm

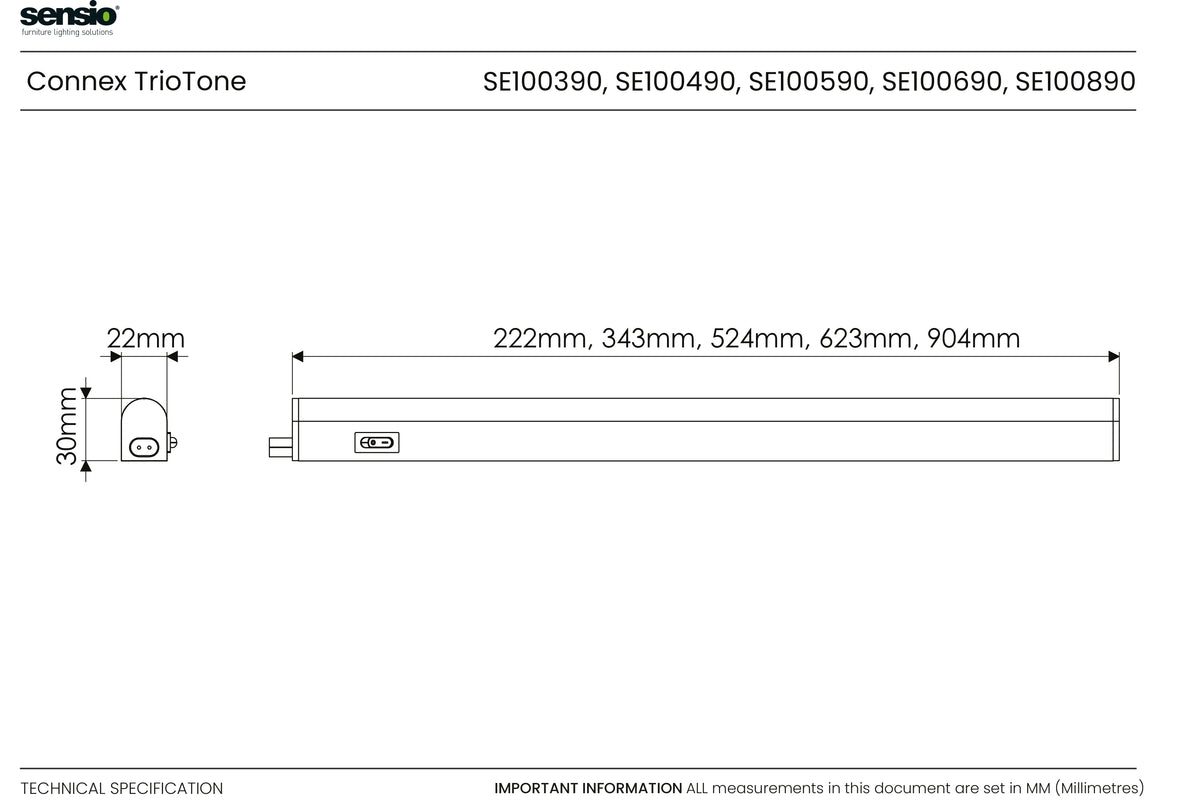

Dimensions

222mm x 22mm x 30mm | 343mm x 22mm x 30mm | 524mm x 22mm x 30mm | 623mm x 22mm x 30mm | 904mm x 22mm x 30mm

IP Rating

IP20

Warranty

7 Years

Material

Guides & Downloads

View and download the product files and technical specifications

Dimensions

Driver Calculator

Questions and answers

What is TrioTone®?

TrioTone® lets you choose cool, natural or warm white with the flick of a switch.

Do Connex TrioTone under cupboard lights need a driver?

No. It is mains powered and comes with 1.5m of bare ended mains cable.

How do I switch it on and off?

Wire it into a mains wall switch, or use the rocker switch on each light.

Can I link several lights together?

Yes. Link them directly, or use joining cables (sold separately) for corners and gaps.

What lengths are available?

222mm, 343mm, 524mm, 623mm and 904mm.

Finish

White

Control

Rocker Switch

Voltage

240V

Wattage

3W | 5W | 9W | 12W | 16W

Lumens

80 lm/ m, 95 lm/m, 85 lm/m

Kelvins

3000K, 4000K, 5000K

Light Technology

TrioTone®

Beam Angle

120°

Cable Length

1500mm

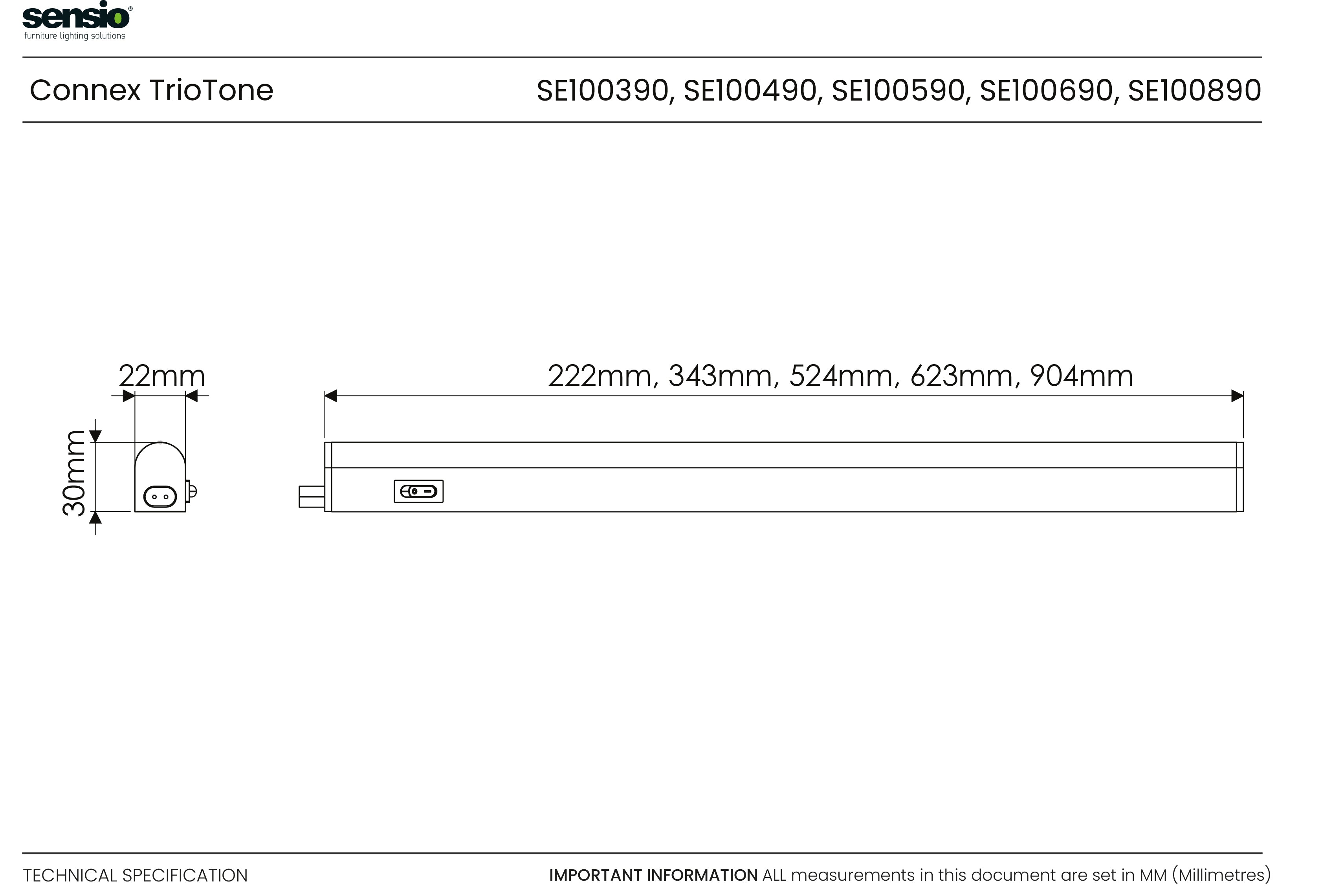

Dimensions

222mm x 22mm x 30mm | 343mm x 22mm x 30mm | 524mm x 22mm x 30mm | 623mm x 22mm x 30mm | 904mm x 22mm x 30mm

IP Rating

IP20

Warranty

7 Years

Material

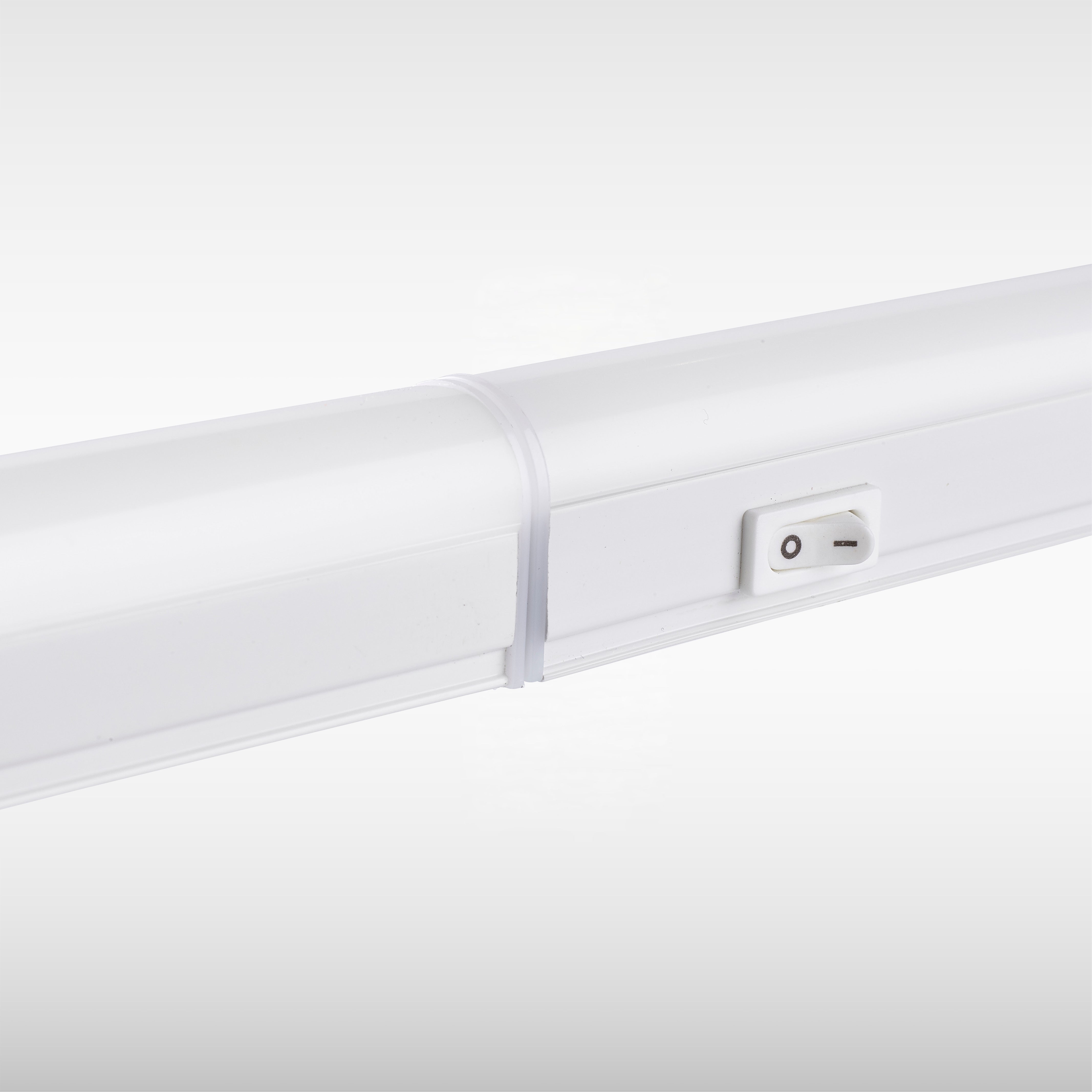

Simple Slotting Mechanism

Interlink multiple strip lights with the integrated connector to achieve the optimum run of light for your space.

TrioTone® Technology

The ultimate versatility in LED colour selection in one light fitting. Our TrioTone® technology enables you to select the temperature right up to the point of installation.

Discover more

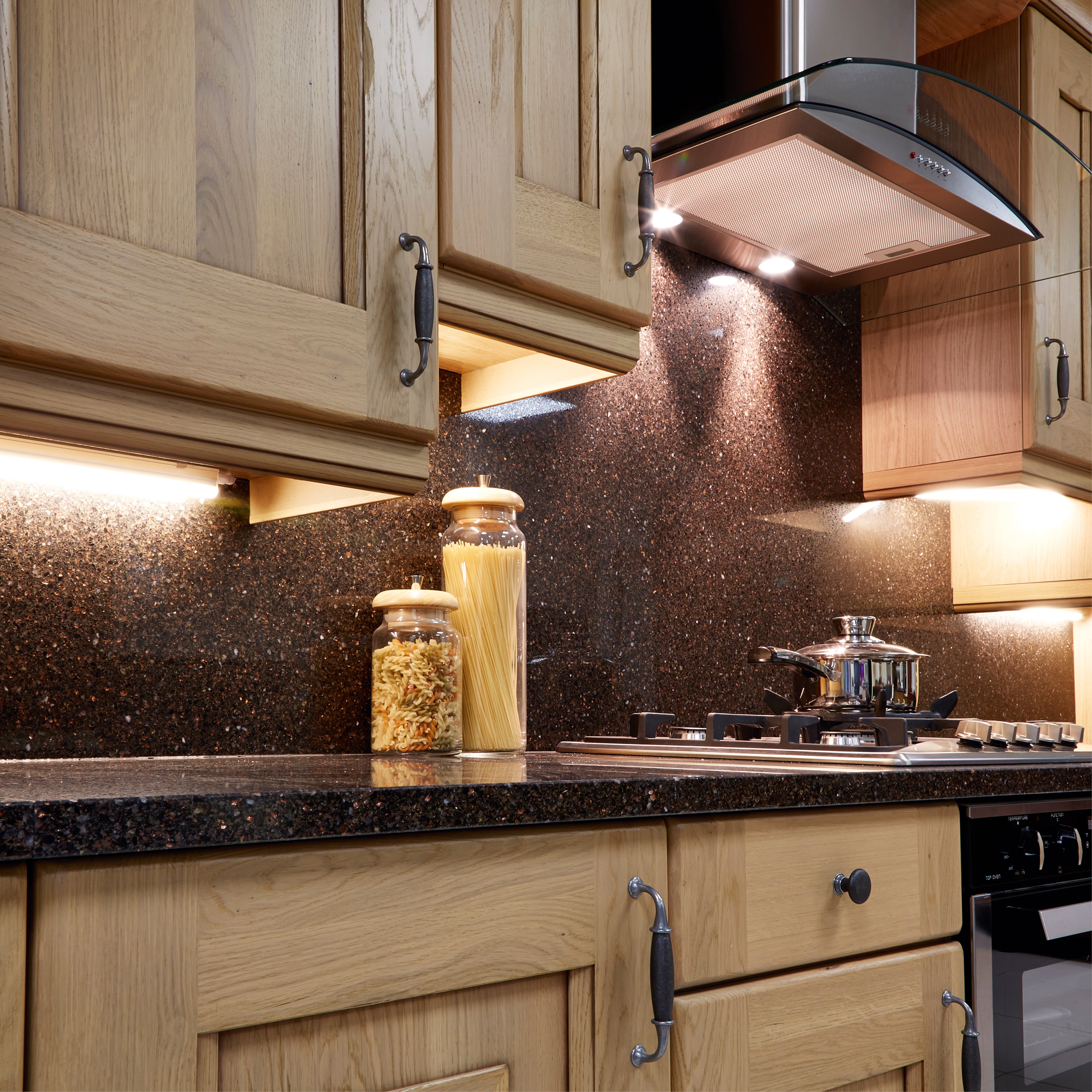

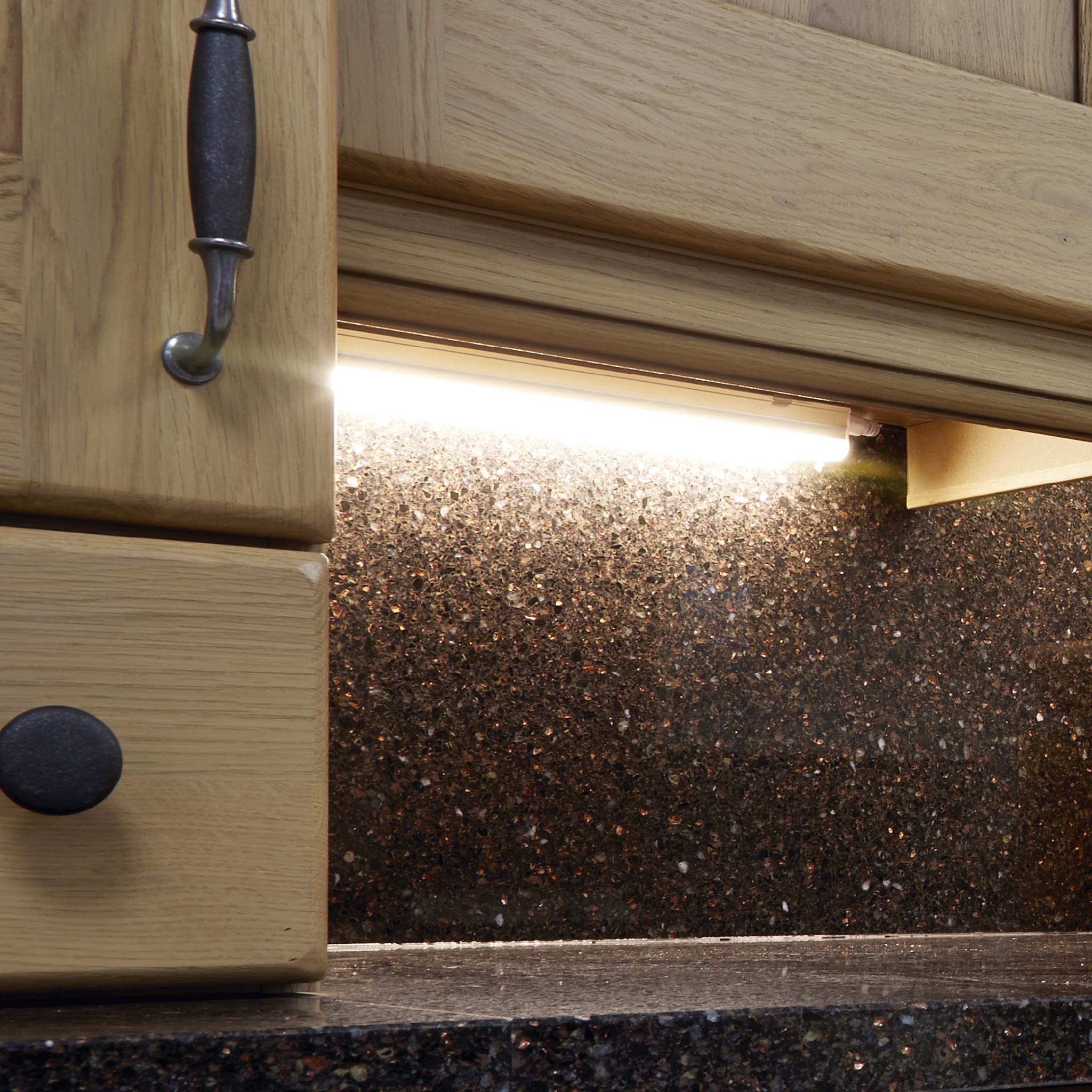

Unbroken Task Lighting

Under cabinet strip lighting creates a continuous, unbroken run of light - flooding across a worktop for tasks like food preperation.

Corner Compatible

Use joining cables (sold seperatley) to connect the strip lights at corners or create intermittent runs.

Choosing the right lighting

Cool white is suited to contemporary or modern kitchen styles to create a stunning effect. Natural white is a versatile colour temperature and compliments a wide range of kitchen styles. Warm white perfectly matches with more tradition styles featuring wooden finishes.
